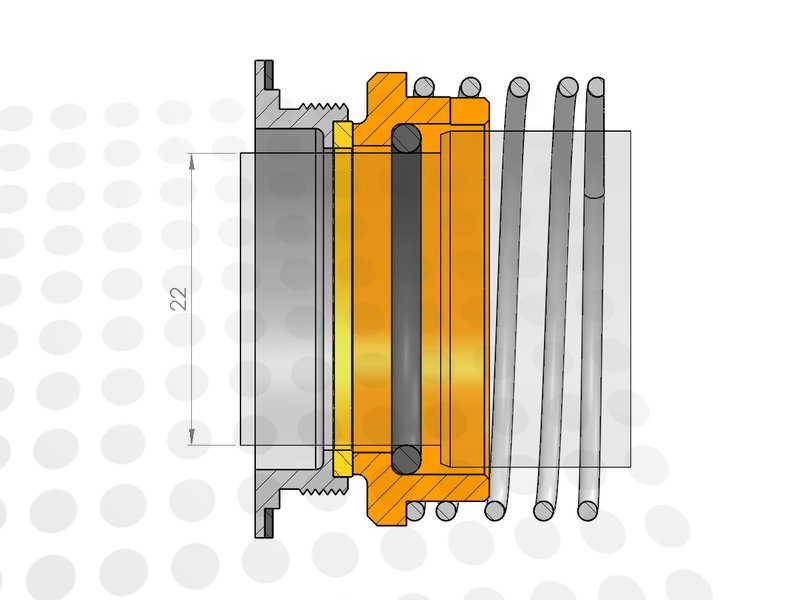

The Alfa Laval 9612-4392-04 is part of the None group and is designed for 22 mm shaft applications. It features a carbon rotary face paired with a sintered silicon carbide stationary face. This product uses Viton (FKM VIT) elastomers. The maximum recommended operating temperature is 205°C. It is a compatible alternative to the Qseals 1C-QPS07B-0220-CZV.
| Brand | Alfa Laval |
|---|---|
| Group | None |
| SKU | 9612-4392-04 |
No commitment. Receive a price and technical data sheet within 24 hours.
Technical specifications
| Category | PUMP SPECIFIC |
|---|---|
| Shaft size | 22 mm |
| Rotary face | Carbon |
| Stationary face | Sintered Silicon Carbide |
| Elastomers | Viton |
| Temperature Limit | 205 °C |
| Pressure Limit | 25 bar |
Alternatives
These products are direct 1-to-1 replacements for the Alfa Laval 9612-4392-04, with superior performance, longer service life and better reliability.
| Brand | SKU |
|---|---|
| Qseals | 1C-QPS07B-0220-CZV |
