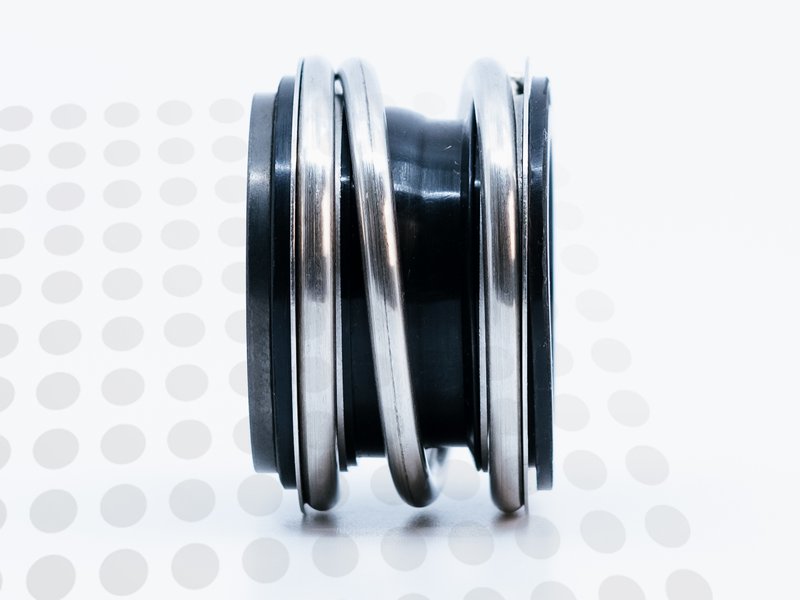

The Anga 100 A41 - BVGG is part of the A41 group and is designed for 100 mm shaft applications. It features Carbon (CAR) rotary faces. This product uses Viton (FKM VIT) elastomers. The maximum recommended operating temperature is 205°C. It is a compatible alternative to the Qseals 2R-QRB01-1000-C-V.
| Brand | Anga |
|---|---|
| Group | A41 |
| SKU | 100 A41 - BVGG |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.
Technical specifications
| Category | RUBBER BELLOW |
|---|---|

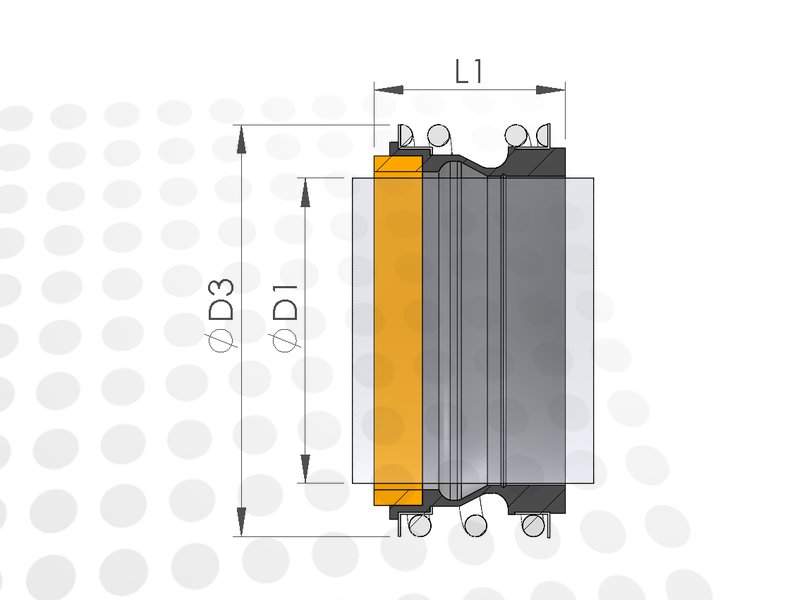

| Shaft size (D1) | 100 mm |
| Rotary face | Carbon (CAR) |
| Elastomers | Viton (FKM VIT) |
| Rotary Outer Diameter (D3) | |
| Rotary Working Length (L1) | |
| Temperature Limit | 205 °C |
| Pressure Limit | 16 bar |
Other size or material combination?
Search within the Anga A41 product group.
Alternatives
These products are direct 1-to-1 replacements for the Anga 100 A41 - BVGG, with superior performance, longer service life and better reliability.
| Brand | SKU |
|---|---|
| Qseals | 2R-QRB01-1000-C-V |
