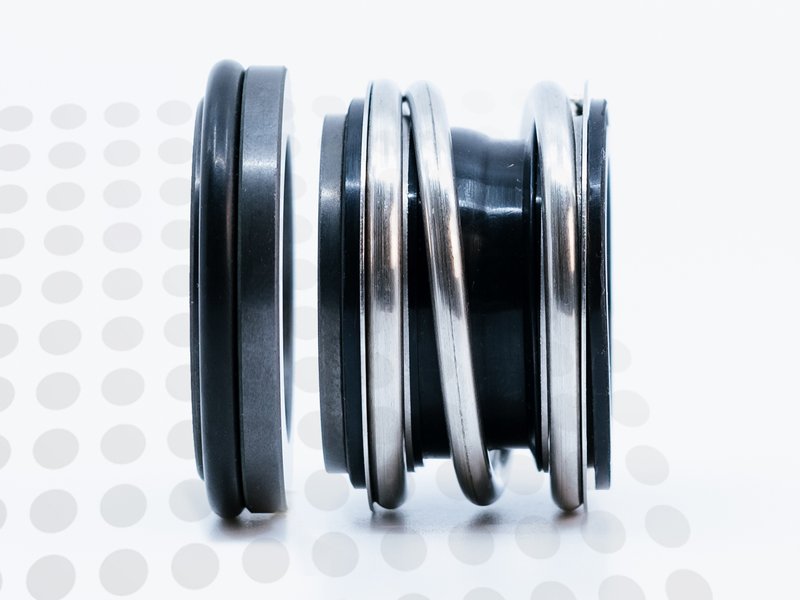

The Anga 33 A1/A5 - BQPGG is part of the A1 group and is designed for 33 mm shaft applications. It features a carbon rotary face paired with a silicon carbide stationary face. This product uses NBR (NITRILE) elastomers. The maximum recommended operating temperature is 120°C. It is a compatible alternative to the Qseals 2C-QRB01ST06-0330-CSN.
| Brand | Anga |
|---|---|
| Group | A1 |
| SKU | 33 A1/A5 - BQPGG |
No commitment. Receive a price and technical data sheet within 24 hours.

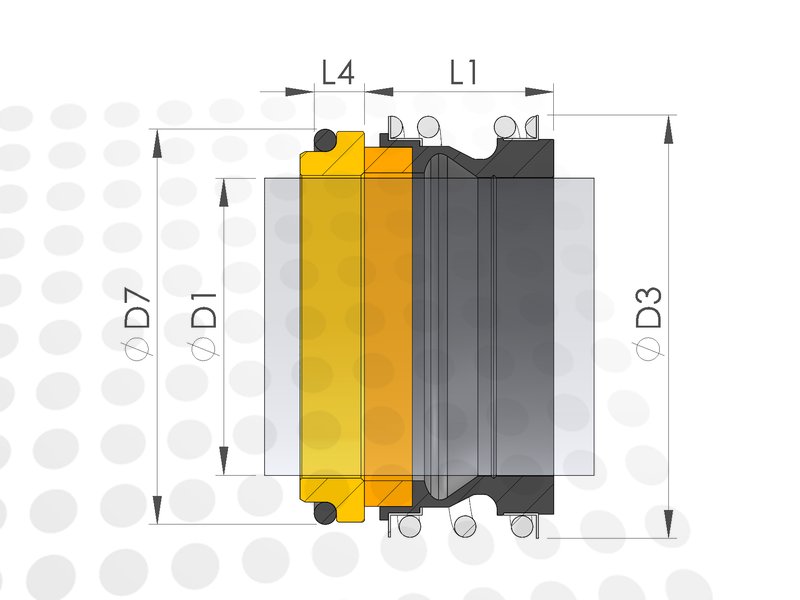

Technical specifications
| Category | RUBBER BELLOW |
|---|---|
| Shaft size | 33 mm |
| Rotary face | Carbon |
| Stationary face | Silicon Carbide |
| Elastomers | NBR |
| Rotary Outer Diameter | |
| Stationary Housing Diameter | |
| Rotary Working Length | |
| Stationary Bore Depth | |
| Temperature Limit | 120 °C |
| Pressure Limit | 16 bar |
Alternatives
These products are direct 1-to-1 replacements for the Anga 33 A1/A5 - BQPGG, with superior performance, longer service life and better reliability.
| Brand | SKU |
|---|---|
| Qseals | 2C-QRB01ST06-0330-CSN |
