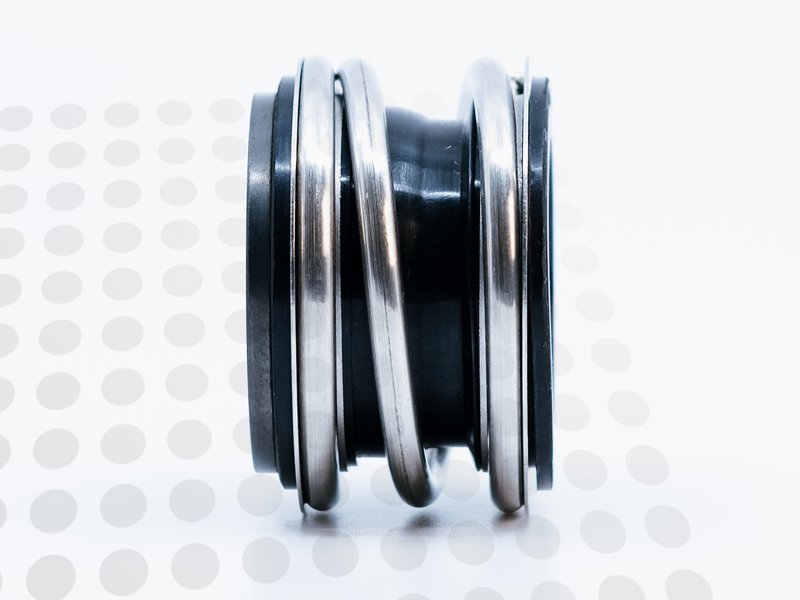

The Anga 50 A1 - QEGG is part of the A1 group and is designed for 50 mm shaft applications. It features Silicon Carbide (SIC) rotary faces. This product uses EPDM (EPR) elastomers. The maximum recommended operating temperature is 140°C. It is a compatible alternative to the Qseals 2R-QRB01-0500-S-E.
| Brand | Anga |
|---|---|
| Group | A1 |
| SKU | 50 A1 - QEGG |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.
Technical specifications
| Category | RUBBER BELLOW |
|---|---|

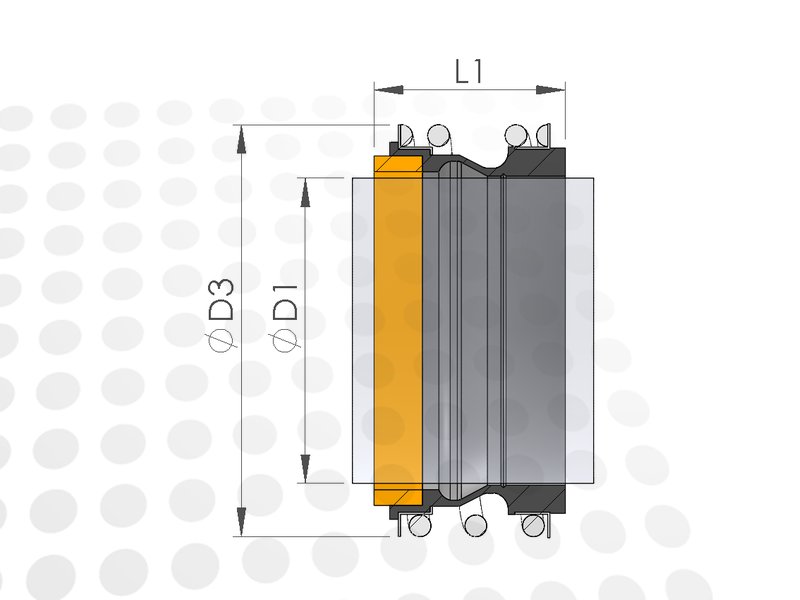

| Shaft size (D1) | 50 mm |
| Rotary face | Silicon Carbide (SIC) |
| Elastomers | EPDM (EPR) |
| Rotary Outer Diameter (D3) | |
| Rotary Working Length (L1) | |
| Temperature Limit | 140 °C |
| Pressure Limit | 16 bar |
Other size or material combination?
Search within the Anga A1 product group.
Alternatives
These products are direct 1-to-1 replacements for the Anga 50 A1 - QEGG, with superior performance, longer service life and better reliability.
| Brand | SKU |
|---|---|
| Qseals | 2R-QRB01-0500-S-E |
