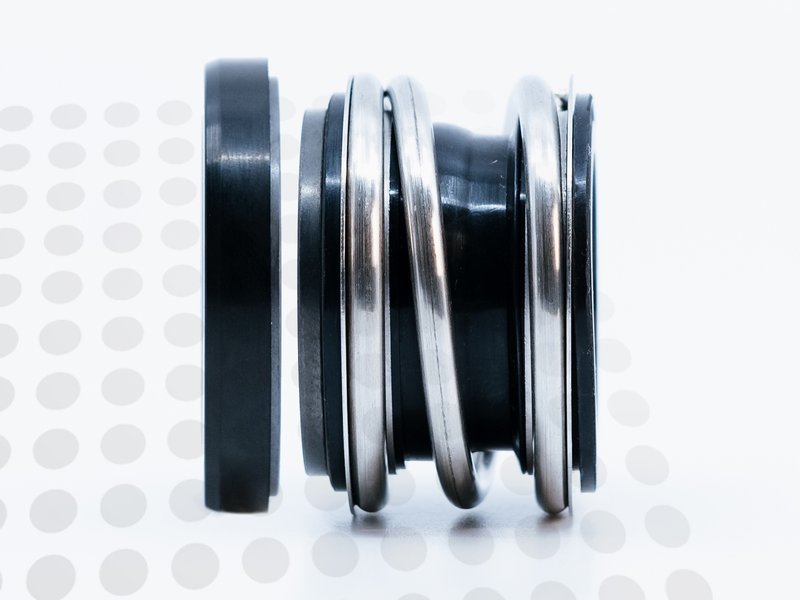

The Anga 58 A1/E5 - BVVGG is part of the A1 group and is designed for 58 mm shaft applications. It features a Carbon (CAR) rotary face paired with a Ceramic (CER) stationary face. This product uses Viton (FKM VIT) elastomers. The maximum recommended operating temperature is 205°C. It is a compatible alternative to the Qseals 2C-QRB01ST60-0580-CUV.
| Brand | Anga |
|---|---|
| Group | A1 |
| SKU | 58 A1/E5 - BVVGG |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.

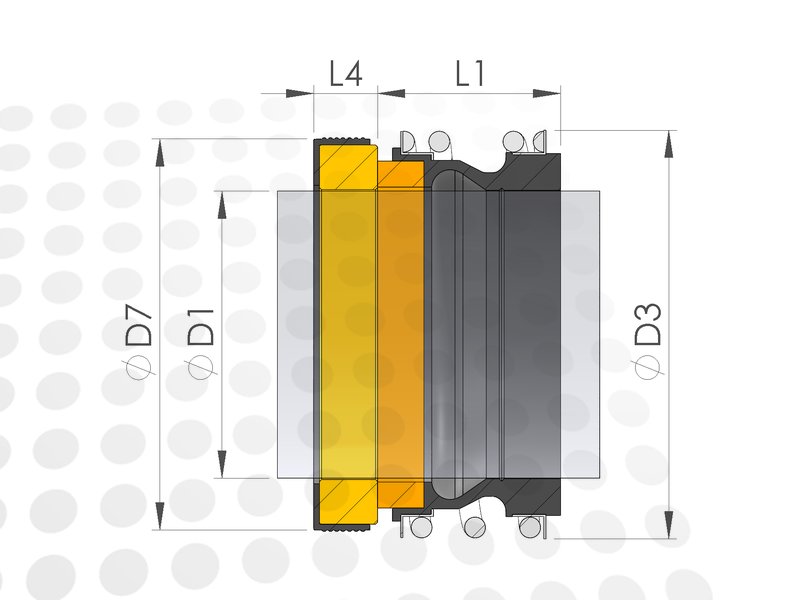

Technical specifications
| Category | RUBBER BELLOW |
|---|---|
| Shaft size (D1) | 58 mm |
| Rotary face | Carbon (CAR) |
| Stationary face | Ceramic (CER) |
| Elastomers | Viton (FKM VIT) |
| Rotary Outer Diameter (D3) | |
| Stationary Housing Diameter (D7) | |
| Rotary Working Length (L1) | |
| Stationary Bore Depth (L4) | |
| Temperature Limit | 205 °C |
| Pressure Limit | 16 bar |
Other size or material combination?
Search within the Anga A1 product group.
Alternatives
These products are direct 1-to-1 replacements for the Anga 58 A1/E5 - BVVGG, with superior performance, longer service life and better reliability.
| Brand | SKU |
|---|---|
| Qseals | 2C-QRB01ST60-0580-CUV |
