The Burgmann M32/35-00-R AVEGG is part of the M32 group and is designed for 35 mm shaft applications. It features a Carbon (CAR) rotary face paired with a Ceramic (CER) stationary face. This product uses EPDM (EPR) elastomers. The maximum recommended operating temperature is 140°C. It is a compatible alternative to the Qseals 2C-QCS01ST04-0350-CUE-R.
| Brand | Burgmann |
|---|---|
| Group | M32 |
| SKU | M32/35-00-R AVEGG |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.
Technical specifications
| Category | CONICAL SPRING |
|---|---|

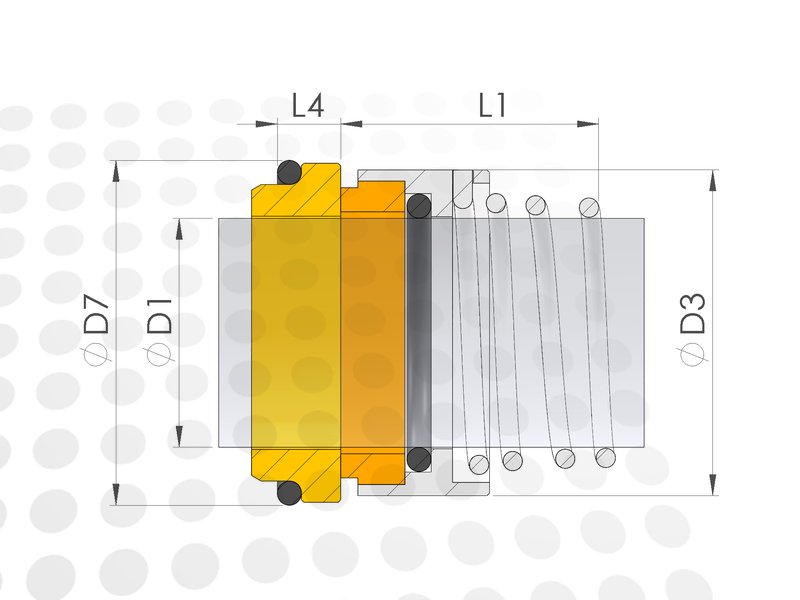

| Shaft size (D1) | 35 mm |
| Rotary face | Carbon (CAR) |
| Stationary face | Ceramic (CER) |
| Elastomers | EPDM (EPR) |
| Spring direction | Right |
| Rotary Outer Diameter (D3) | |
| Stationary Housing Diameter (D7) | |
| Rotary Working Length (L1) | |
| Stationary Bore Depth (L4) | |
| Temperature Limit | 140 °C |
| Pressure Limit | 20 bar |
Other size or material combination?
Search within the Burgmann M32 product group.
Alternatives
These products are direct 1-to-1 replacements for the Burgmann M32/35-00-R AVEGG, with superior performance, longer service life and better reliability.
| Brand | SKU |
|---|---|
| Qseals | 2C-QCS01ST04-0350-CUE-R |
