The Burgmann MG1S15/65-G2-E1 is part of the MG1S15 group and is designed for 65 mm shaft applications. It features a Silicon Carbide (SIC) rotary face paired with a Silicon Carbide (SIC) stationary face. This product uses NBR (NITRILE) elastomers. The maximum recommended operating temperature is 120°C. It is a compatible alternative to the Qseals 2C-QRB24STS-0650-SSN.
| Brand | Burgmann |
|---|---|
| Group | MG1S15 |
| SKU | MG1S15/65-G2-E1 |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.

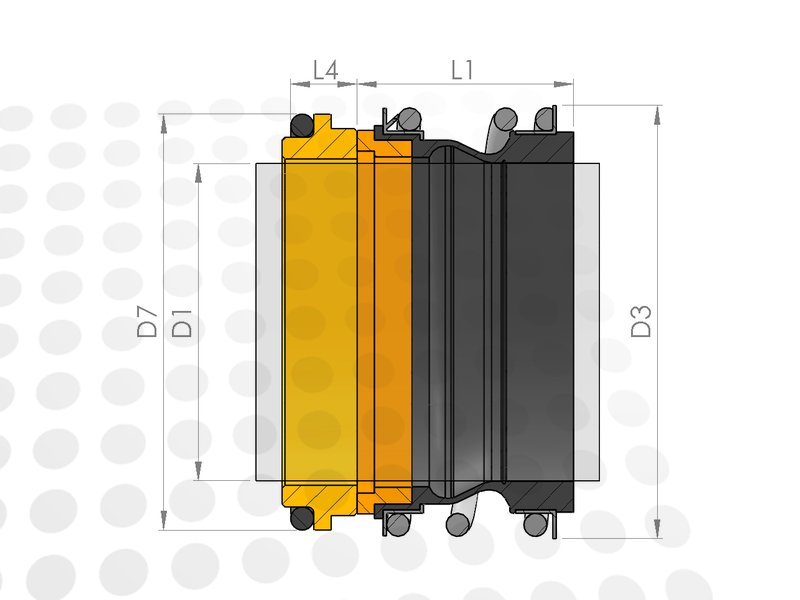

Technical specifications
| Category | RUBBER BELLOW |
|---|---|
| Shaft size (D1) | 65 mm |
| Rotary face | Silicon Carbide (SIC) |
| Stationary face | Silicon Carbide (SIC) |
| Elastomers | NBR (NITRILE) |
| Rotary Outer Diameter (D3) | |
| Stationary Housing Diameter (D7) | |
| Rotary Working Length (L1) | |
| Stationary Bore Depth (L4) | |
| Temperature Limit | 120 °C |
Other size or material combination?
Search within the Burgmann MG1S15 product group.
Alternatives
These products are direct 1-to-1 replacements for the Burgmann MG1S15/65-G2-E1, with superior performance, longer service life and better reliability.
| Brand | SKU |
|---|---|
| Qseals | 2C-QRB24STS-0650-SSN |
