The Burgmann MG1S3/33-G60 is designed for 33 mm shaft applications. It features a Silicon Carbide (SIC) rotary face paired with a Silicon Carbide (SIC) stationary face. This product uses Viton (FKM VIT) elastomers. The maximum recommended operating temperature is 205°C. It is a compatible alternative to the Qseals 2C-QRB19STS-0330-SSV.
| Brand | Burgmann |
|---|---|
| SKU | MG1S3/33-G60 |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.
Technical specifications
| Category | RUBBER BELLOW |
|---|---|

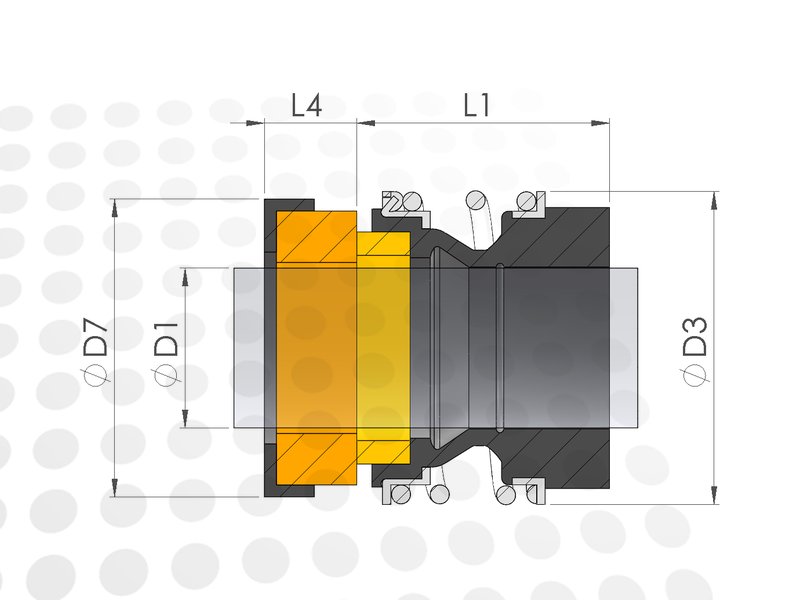

| Shaft size (D1) | 33 mm |
| Rotary face | Silicon Carbide (SIC) |
| Stationary face | Silicon Carbide (SIC) |
| Elastomers | Viton (FKM VIT) |
| Temperature Limit | 205 °C |
| Pressure Limit | 16 bar |
Alternatives
These products are direct 1-to-1 replacements for the Burgmann MG1S3/33-G60, with superior performance, longer service life and better reliability.
| Brand | SKU |
|---|---|
| Qseals | 2C-QRB19STS-0330-SSV |
