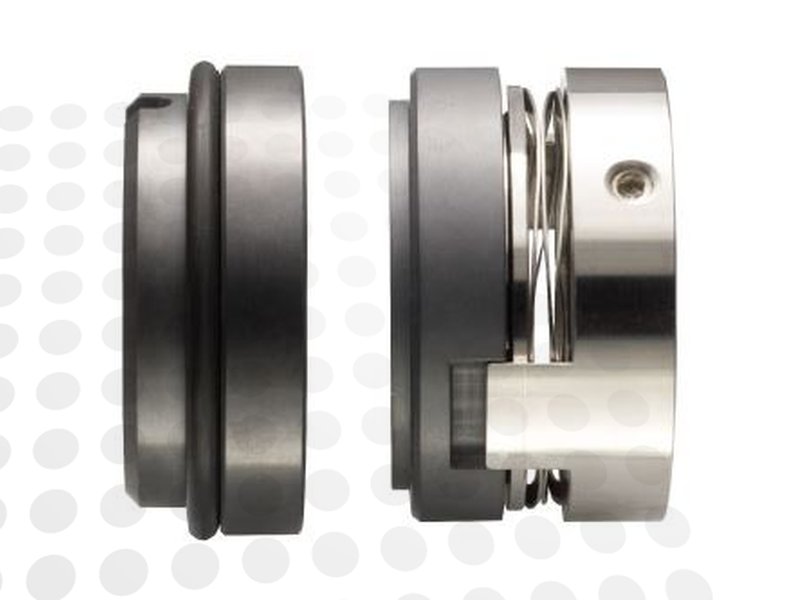

The Flowserve EUROPAC 600-180 Q1BVGG is designed for 180 mm shaft applications. It features a Carbon (CAR) rotary face paired with a Silicon Carbide (SIC) stationary face. This product uses Viton (FKM VIT) elastomers. The maximum recommended operating temperature is 205°C. It is a compatible alternative to the Qseals 2C-QWS07ST09-1800-CSV.
| Brand | Flowserve |
|---|---|
| SKU | EUROPAC 600-180 Q1BVGG |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.
Technical specifications
| Category | WAVE SPRING |
|---|---|

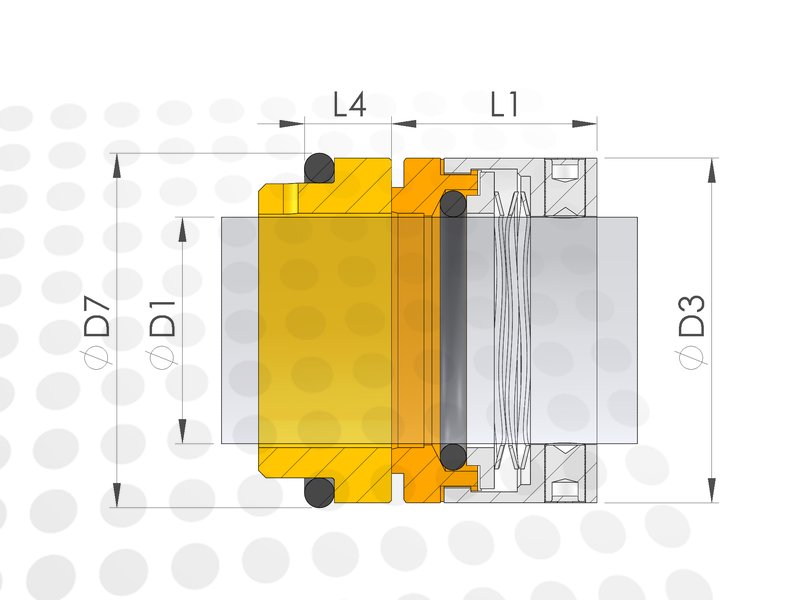

| Shaft size (D1) | 180 mm |
| Rotary face | Carbon (CAR) |
| Stationary face | Silicon Carbide (SIC) |
| Elastomers | Viton (FKM VIT) |
| Rotary Outer Diameter (D3) | |
| Rotary Working Length (L1) | |
| Temperature Limit | 205 °C |
| Pressure Limit | 25 bar |
Alternatives
These products are direct 1-to-1 replacements for the Flowserve EUROPAC 600-180 Q1BVGG, with superior performance, longer service life and better reliability.
| Brand | SKU |
|---|---|
| Qseals | 2C-QWS07ST09-1800-CSV |
