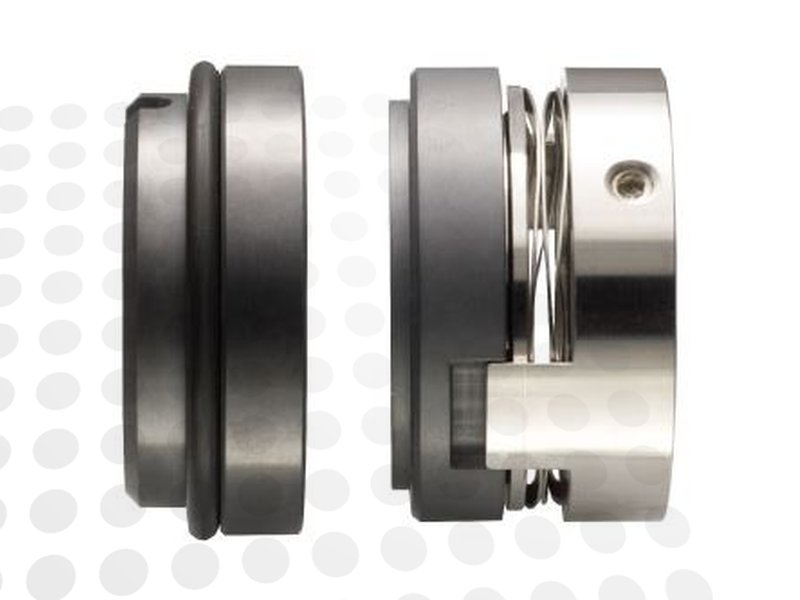

The Flowserve P1678LM095BQ1EGG is part of the Pac-Seal 167 group and is designed for 95 mm shaft applications. It features a carbon rotary face paired with a sintered silicon carbide stationary face. This product uses EPDM (EPR) elastomers. The maximum recommended operating temperature is 140°C. It is a compatible alternative to the Qseals 2C-QWS07ST09-0950-CZE.
| Brand | Flowserve |
|---|---|
| Group | Pac-Seal 167 |
| SKU | P1678LM095BQ1EGG |
No commitment. Receive a price and technical data sheet within 24 hours.
Technical specifications
| Category | WAVE SPRING |
|---|---|
| Shaft size | 95 mm |
| Rotary face | Carbon |
| Stationary face | Sintered Silicon Carbide |
| Elastomers | EPDM |

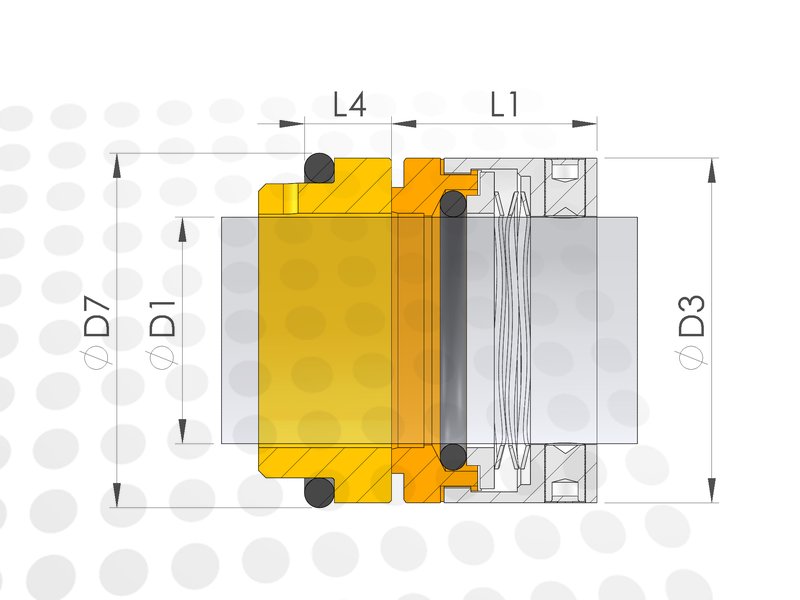

| Rotary Outer Diameter | |
| Stationary Housing Diameter | |
| Rotary Working Length | |
| Stationary Bore Depth | |
| Temperature Limit | 140 °C |
| Pressure Limit | 25 bar |
Alternatives
These products are direct 1-to-1 replacements for the Flowserve P1678LM095BQ1EGG, with superior performance, longer service life and better reliability.
| Brand | SKU |
|---|---|
| Qseals | 2C-QWS07ST09-0950-CZE |
