The Fluiten BS3A 032 U31U31TEE is part of the BS3A group and is designed for 32 mm shaft applications. It features a Sintered Silicon Carbide (SSIC) rotary face paired with a Sintered Silicon Carbide (SSIC) stationary face. This product uses PTFE WRAPPED VITON (TTV) elastomers. The maximum recommended operating temperature is 250°C. It is a compatible alternative to the Qseals 2C-QWS07BST09-0320-ZZW.
| Brand | Fluiten |
|---|---|
| Group | BS3A |
| SKU | BS3A 032 U31U31TEE |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.
Technical specifications
| Category | WAVE SPRING |
|---|---|

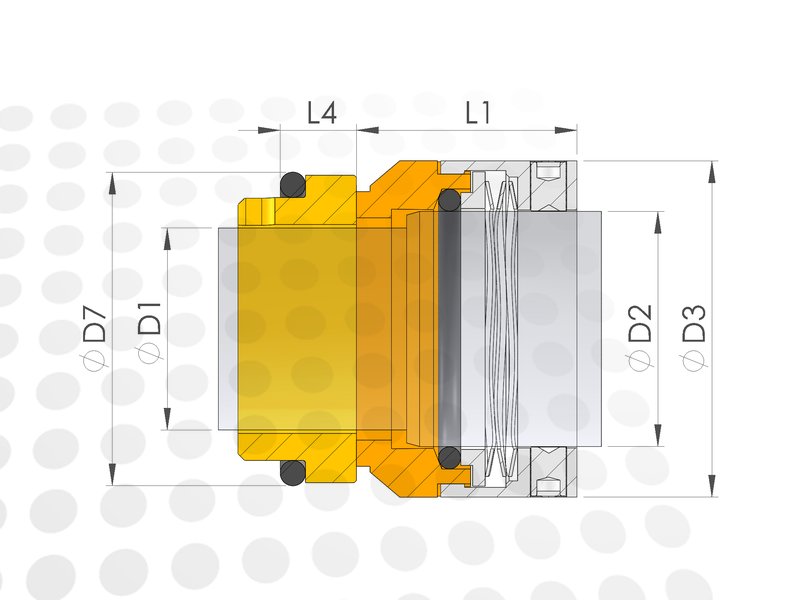

| Shaft size (D1) | 32 mm |
| Rotary face | Sintered Silicon Carbide (SSIC) |
| Stationary face | Sintered Silicon Carbide (SSIC) |
| Elastomers | PTFE WRAPPED VITON (TTV) |
| Upper Shaftsize (D2) | |
| Rotary Outer Diameter (D3) | |
| Stationary Housing Diameter (D7) | |
| Rotary Working Length (L1) | |
| Stationary Bore Depth (L4) | |
| Temperature Limit | 250 °C |
| Pressure Limit | 45 bar |
Other size or material combination?
Search within the Fluiten BS3A product group.
Alternatives
These products are direct 1-to-1 replacements for the Fluiten BS3A 032 U31U31TEE, with superior performance, longer service life and better reliability.
| Brand | SKU |
|---|---|
| Qseals | 2C-QWS07BST09-0320-ZZW |
