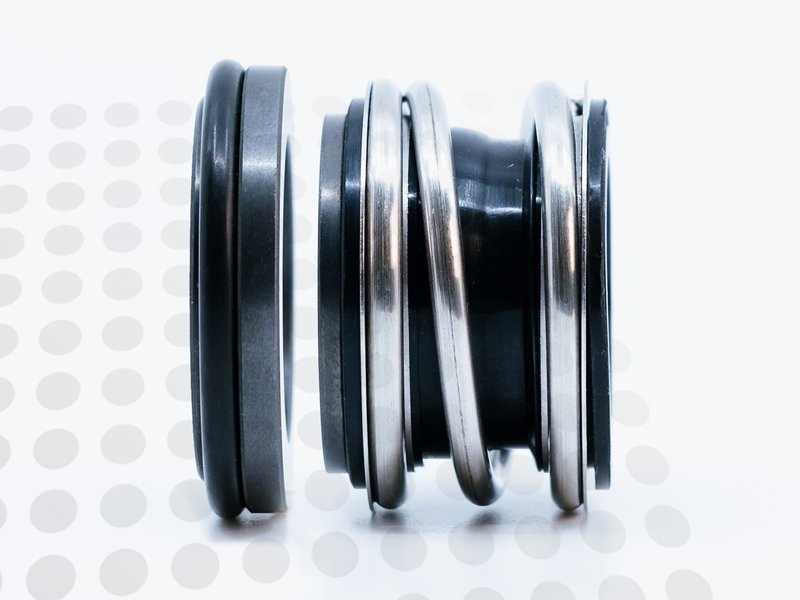

The Fluiten EB + CL 017 Z31U31VEE is part of the EB + CS group and is designed for 17 mm shaft applications. It features a carbon rotary face paired with a silicon carbide stationary face. This product uses Viton (FKM VIT) elastomers. The maximum recommended operating temperature is 205°C. It is a compatible alternative to the Qseals 2C-QRB01ST06-0170-CSV.
| Brand | Fluiten |
|---|---|
| Group | EB + CS |
| SKU | EB + CL 017 Z31U31VEE |
No commitment. Receive a price and technical data sheet within 24 hours.
Technical specifications
| Category | RUBBER BELLOW |
|---|---|
| Shaft size | 17 mm |
| Rotary face | Carbon |
| Stationary face | Silicon Carbide |
| Elastomers | Viton |
| Rotary Outer Diameter | |
| Temperature Limit | 205 °C |
| Pressure Limit | 16 bar |
Alternatives
These products are direct 1-to-1 replacements for the Fluiten EB + CL 017 Z31U31VEE, with superior performance, longer service life and better reliability.
| Brand | SKU |
|---|---|
| Qseals | 2C-QRB01ST06-0170-CSV |
