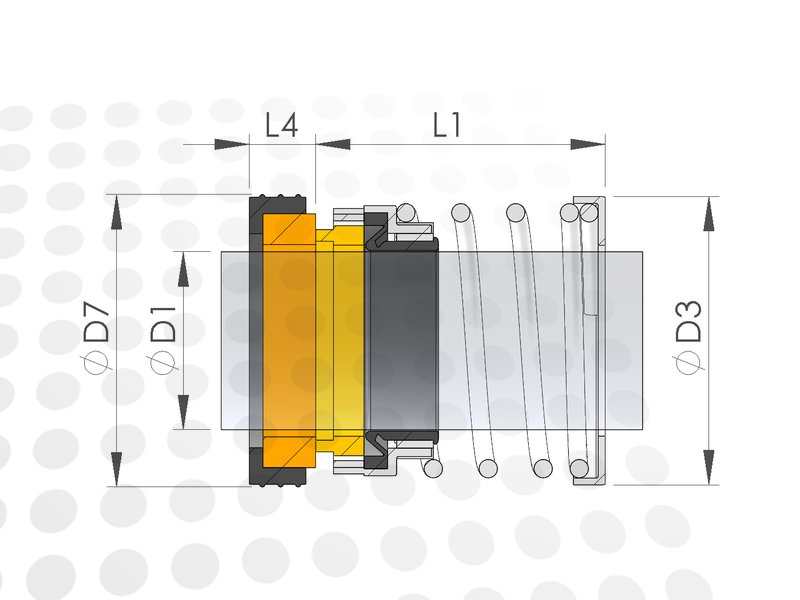

The Fluiten PC2032 U32U32VQQ is part of the PC2 group and is designed for 32 mm shaft applications. It features a silicon carbide rotary face paired with a silicon carbide stationary face. This product uses Viton (FKM VIT) elastomers. The maximum recommended operating temperature is 205°C. It is a compatible alternative to the Qseals 2C-QPS03ST61-0320-SSV.
| Brand | Fluiten |
|---|---|
| Group | PC2 |
| SKU | PC2032 U32U32VQQ |
No commitment. Receive a price and technical data sheet within 24 hours.
Technical specifications
| Category | PARALLEL SPRING |
|---|---|
| Shaft size | 32 mm |
| Rotary face | Silicon Carbide |
| Stationary face | Silicon Carbide |
| Elastomers | Viton |
| Rotary Outer Diameter | |
| Stationary Housing Diameter | |
| Rotary Working Length | |
| Stationary Bore Depth | |
| Temperature Limit | 205 °C |
| Pressure Limit | 25 bar |
Alternatives
These products are direct 1-to-1 replacements for the Fluiten PC2032 U32U32VQQ, with superior performance, longer service life and better reliability.
| Brand | SKU |
|---|---|
| Qseals | 2C-QPS03ST61-0320-SSV |
