The Fluiten S2029 U41U41GQQ is part of the S2 group and is designed for 29 mm shaft applications. It features a Silicon Carbide (SIC) rotary face paired with a Silicon Carbide (SIC) stationary face. This product uses NBR (NITRILE) elastomers. The maximum recommended operating temperature is 120°C. It is a compatible alternative to the Qseals 2C-QCS10ST01-0290-SSN-R.
| Brand | Fluiten |
|---|---|
| Group | S2 |
| SKU | S2029 U41U41GQQ |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.

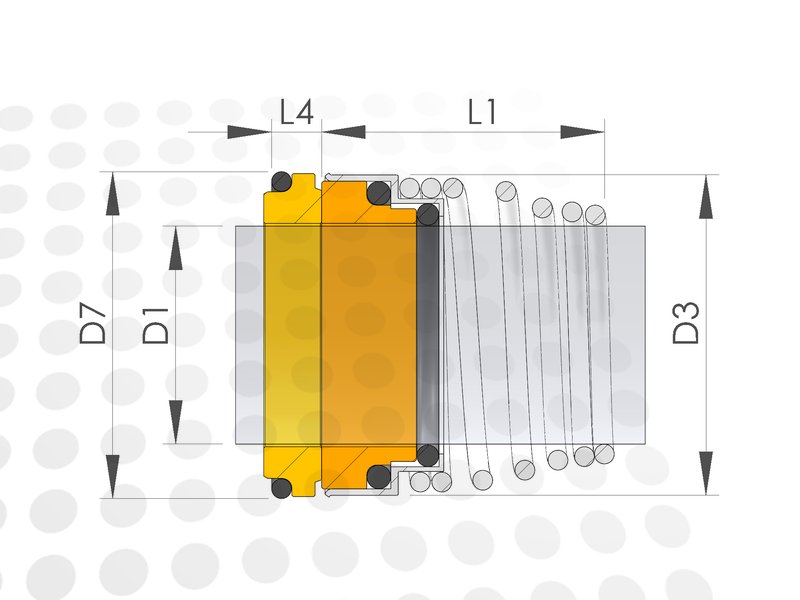

Technical specifications
| Category | CONICAL SPRING |
|---|---|
| Shaft size (D1) | 29 mm |
| Rotary face | Silicon Carbide (SIC) |
| Stationary face | Silicon Carbide (SIC) |
| Elastomers | NBR (NITRILE) |
| Spring direction | Right |
| Rotary Outer Diameter (D3) | |
| Rotary Working Length (L1) | |
| Temperature Limit | 120 °C |
| Pressure Limit | 20 bar |
Other size or material combination?
Search within the Fluiten S2 product group.
Alternatives
These products are direct 1-to-1 replacements for the Fluiten S2029 U41U41GQQ, with superior performance, longer service life and better reliability.
| Brand | SKU |
|---|---|
| Qseals | 2C-QCS10ST01-0290-SSN-R |
