The Fluiten S2030 K21K21DQQ is part of the S2 group and is designed for 30 mm shaft applications. It features a Tungsten Carbide (TC) rotary face paired with a Tungsten Carbide (TC) stationary face. This product uses EPDM (EPR) elastomers. The maximum recommended operating temperature is 140°C. It is a compatible alternative to the Qseals 2C-QCS10ST01-0300-TTE-R.
| Brand | Fluiten |
|---|---|
| Group | S2 |
| SKU | S2030 K21K21DQQ |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.
Technical specifications

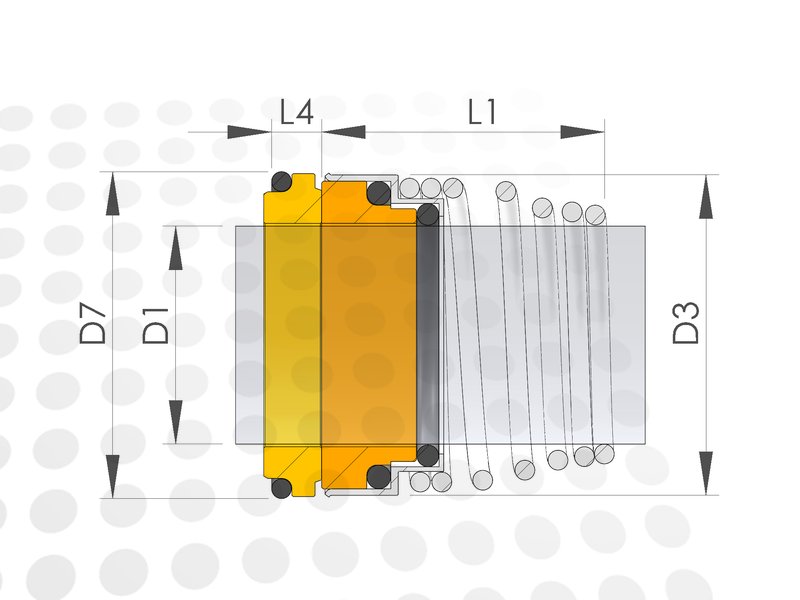

| Category | CONICAL SPRING |
|---|---|
| Shaft size (D1) | 30 mm |
| Rotary face | Tungsten Carbide (TC) |
| Stationary face | Tungsten Carbide (TC) |
| Elastomers | EPDM (EPR) |
| Spring direction | Right |
| Rotary Outer Diameter (D3) | |
| Stationary Housing Diameter (D7) | |
| Rotary Working Length (L1) | |
| Stationary Bore Depth (L4) | |
| Temperature Limit | 140 °C |
| Pressure Limit | 20 bar |
Other size or material combination?
Search within the Fluiten S2 product group.
Alternatives
These products are direct 1-to-1 replacements for the Fluiten S2030 K21K21DQQ, with superior performance, longer service life and better reliability.
| Brand | SKU |
|---|---|
| Qseals | 2C-QCS10ST01-0300-TTE-R |
