The Fluiten S3 050 SZ31VEE LH is part of the S3 group and is designed for 50 mm shaft applications. It features a Stainless Steel (SS) rotary face paired with a Carbon (CAR) stationary face. This product uses Viton (FKM VIT) elastomers. The maximum recommended operating temperature is 205°C. It is a compatible alternative to the Qseals 2C-QCS07ST01-0500-XCV-L.
| Brand | Fluiten |
|---|---|
| Group | S3 |
| SKU | S3 050 SZ31VEE LH |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.

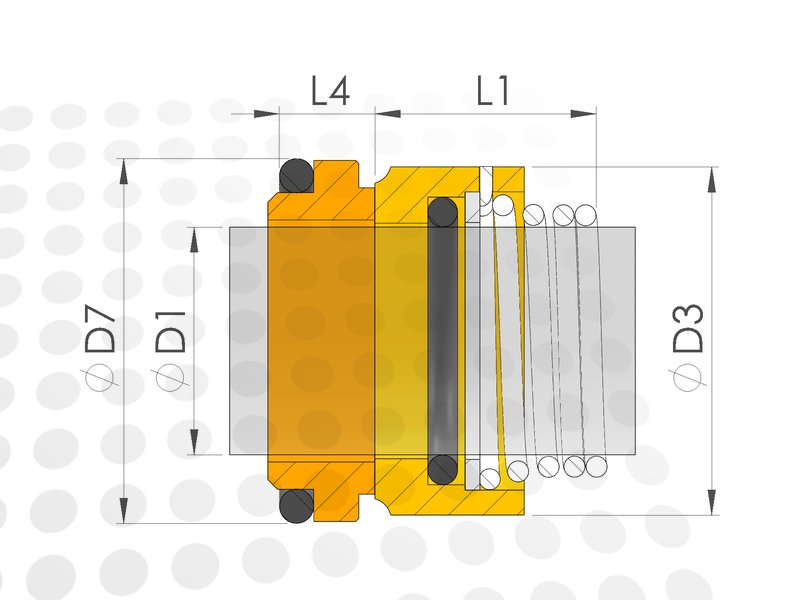

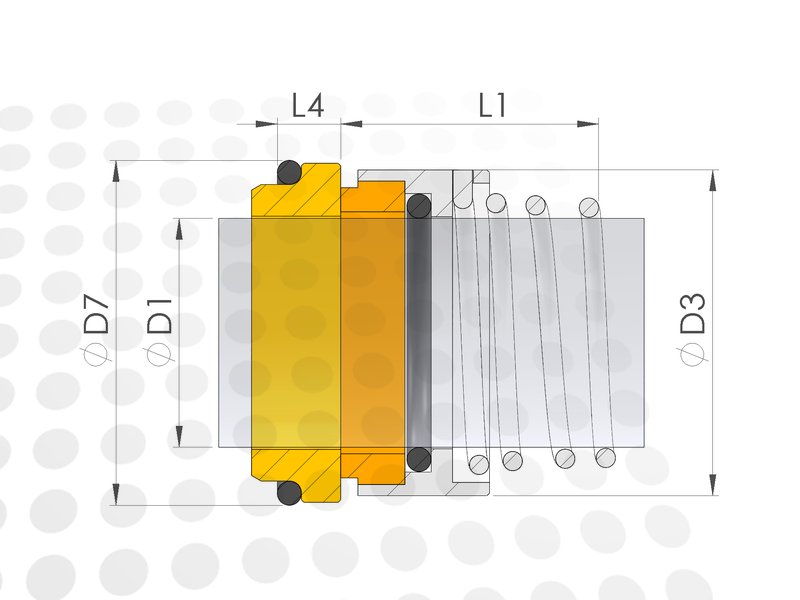

Technical specifications
| Category | CONICAL SPRING |
|---|---|
| Shaft size (D1) | 50 mm |
| Rotary face | Stainless Steel (SS) |
| Stationary face | Carbon (CAR) |
| Elastomers | Viton (FKM VIT) |
| Spring direction | Left |
| Rotary Outer Diameter (D3) | |
| Stationary Housing Diameter (D7) | |
| Rotary Working Length (L1) | |
| Stationary Bore Depth (L4) | |
| Temperature Limit | 205 °C |
| Pressure Limit | 20 bar |
Other size or material combination?
Search within the Fluiten S3 product group.
Alternatives
These products are direct 1-to-1 replacements for the Fluiten S3 050 SZ31VEE LH, with superior performance, longer service life and better reliability.
| Brand | SKU |
|---|---|
| Qseals | 2C-QCS07ST01-0500-XCV-L |
