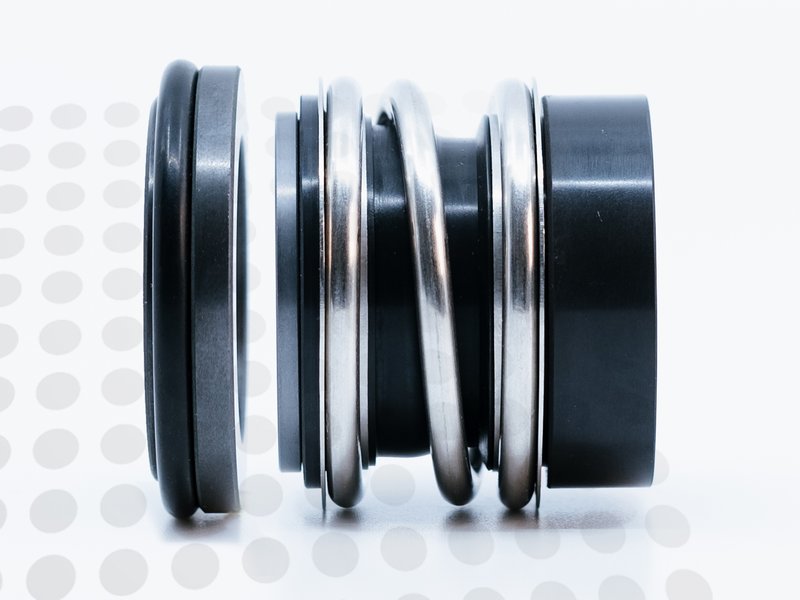

The LATTY 522 017 B U3 EP is part of the 522 group and is designed for 17 mm shaft applications. It features a Carbon (CAR) rotary face paired with a Silicon Carbide (SIC) stationary face. This product uses EPDM (EPR) elastomers. The maximum recommended operating temperature is 140°C. It is a compatible alternative to the Qseals 2C-QRB02ST06-0170-CSE.
| Brand | LATTY |
|---|---|
| Group | 522 |
| SKU | 522 017 B U3 EP |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.
Technical specifications
| Category | RUBBER BELLOW |
|---|---|

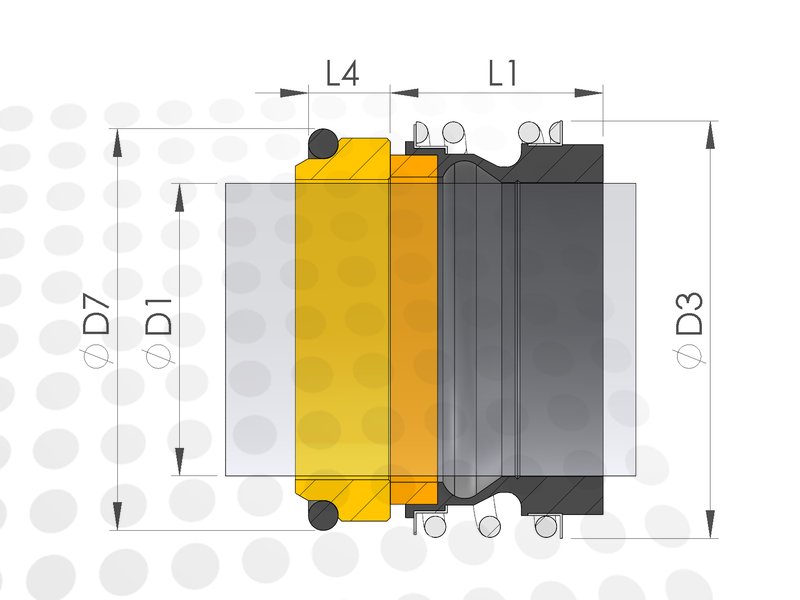

| Shaft size (D1) | 17 mm |
| Rotary face | Carbon (CAR) |
| Stationary face | Silicon Carbide (SIC) |
| Elastomers | EPDM (EPR) |
| Temperature Limit | 140 °C |
| Pressure Limit | 16 bar |
Other size or material combination?
Search within the LATTY 522 product group.
Alternatives
These products are direct 1-to-1 replacements for the LATTY 522 017 B U3 EP, with superior performance, longer service life and better reliability.
| Brand | SKU |
|---|---|
| Qseals | 2C-QRB02ST06-0170-CSE |
