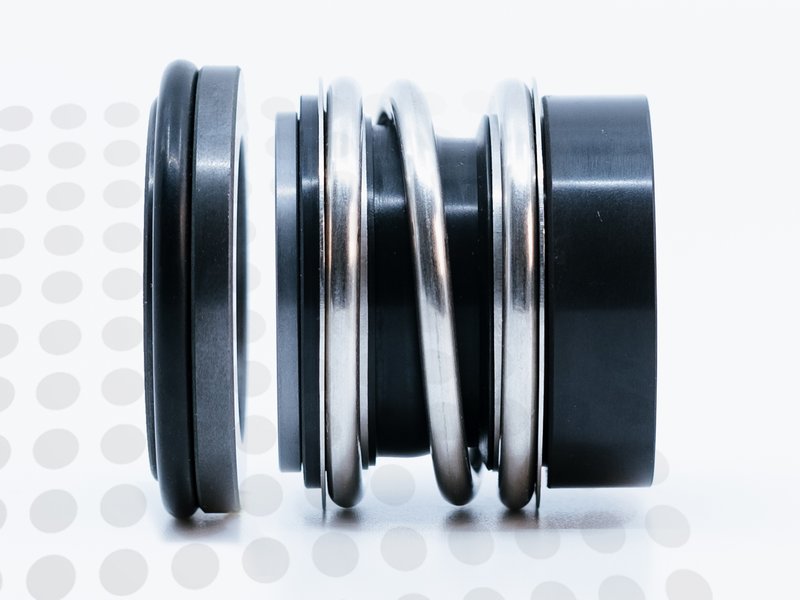

The LATTY 522 058 B U3 N is part of the 522 group and is designed for 58 mm shaft applications. It features a Carbon (CAR) rotary face paired with a Silicon Carbide (SIC) stationary face. This product uses NBR (NITRILE) elastomers. The maximum recommended operating temperature is 120°C. It is a compatible alternative to the Qseals 2C-QRB02ST06-0580-CSN.
| Brand | LATTY |
|---|---|
| Group | 522 |
| SKU | 522 058 B U3 N |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.
Technical specifications
| Category | RUBBER BELLOW |
|---|---|
| Shaft size (D1) | 58 mm |
| Rotary face | Carbon (CAR) |
| Stationary face | Silicon Carbide (SIC) |
| Elastomers | NBR (NITRILE) |

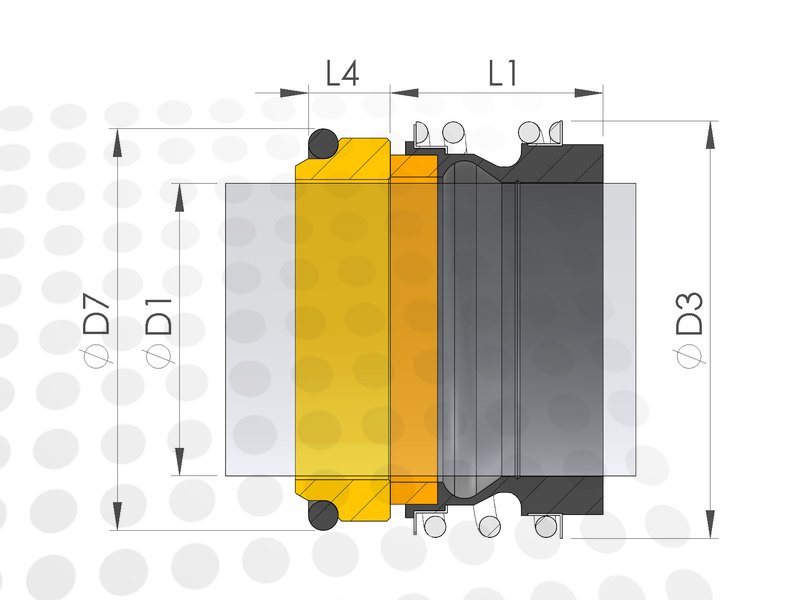

| Rotary Outer Diameter (D3) | |
| Stationary Housing Diameter (D7) | |
| Rotary Working Length (L1) | |
| Stationary Bore Depth (L4) | |
| Temperature Limit | 120 °C |
| Pressure Limit | 16 bar |
Other size or material combination?
Search within the LATTY 522 product group.
Alternatives
These products are direct 1-to-1 replacements for the LATTY 522 058 B U3 N, with superior performance, longer service life and better reliability.
| Brand | SKU |
|---|---|
| Qseals | 2C-QRB02ST06-0580-CSN |
