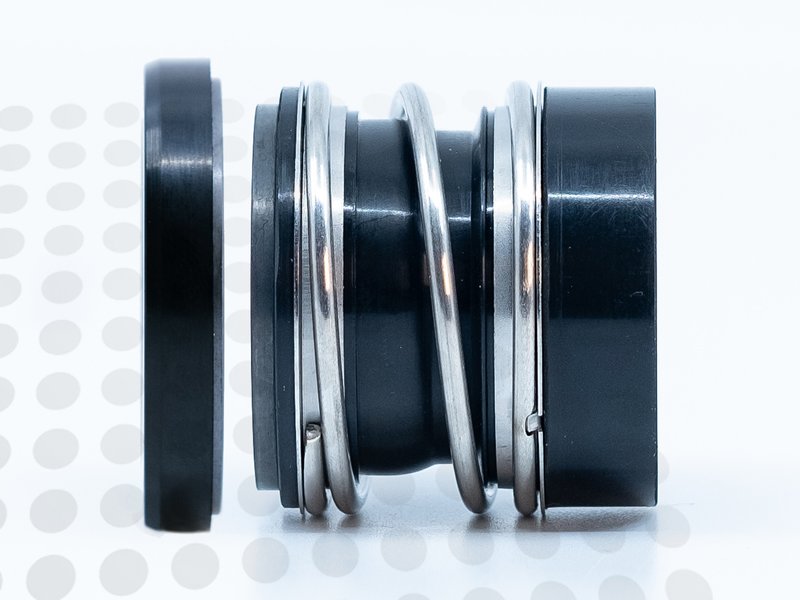

The LATTY 532 025 B V V is part of the 532 group and is designed for 25 mm shaft applications. It features a carbon rotary face paired with a ceramic stationary face. This product uses Viton (FKM VIT) elastomers. The maximum recommended operating temperature is 205°C. It is a compatible alternative to the Qseals 2C-QRB07ST60-0250-CUV.
| Brand | LATTY |
|---|---|
| Group | 532 |
| SKU | 532 025 B V V |
No commitment. Receive a price and technical data sheet within 24 hours.
Technical specifications
| Category | RUBBER BELLOW |
|---|---|
| Shaft size | 25 mm |
| Rotary face | Carbon |
| Stationary face | Ceramic |
| Elastomers | Viton |
| Rotary Outer Diameter | |
| Stationary Housing Diameter | |
| Rotary Working Length | |
| Stationary Bore Depth | |
| Temperature Limit | 205 °C |
Alternatives
These products are direct 1-to-1 replacements for the LATTY 532 025 B V V, with superior performance, longer service life and better reliability.
| Brand | SKU |
|---|---|
| Qseals | 2C-QRB07ST60-0250-CUV |
