The LATTY LI-10107 is part of the LI AL3 group and is designed for 27 mm shaft applications. It features a Carbon (CAR) rotary face paired with a Sintered Silicon Carbide (SSIC) stationary face. This product uses EPDM (EPR) elastomers. The maximum recommended operating temperature is 140°C. It is a compatible alternative to the Qseals 1C-QPS07-0270-CZE.
Technical specifications
| Category | PUMP SPECIFIC |
|---|---|

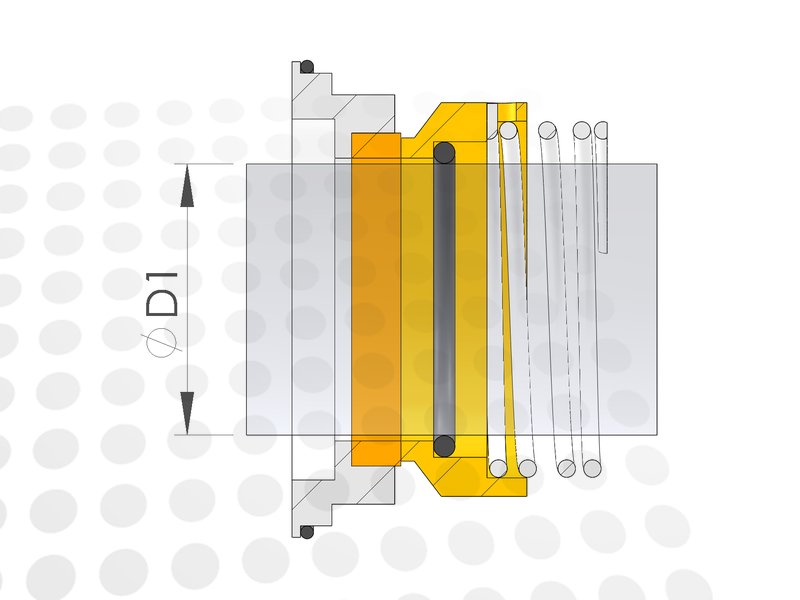

| Shaft size (D1) | 27 mm |
| Rotary face | Carbon (CAR) |
| Stationary face | Sintered Silicon Carbide (SSIC) |
| Elastomers | EPDM (EPR) |
| Temperature limit | 140 °C |
| Pressure limit | 25 bar |
Other size or material combination?
Search within the LATTY LI AL3 product group.
Alternatives
These products are direct 1-to-1 replacements for the LATTY LI-10107, with superior performance, longer service life and better reliability.
| Brand | SKU |
|---|---|
| Qseals | 1C-QPS07-0270-CZE |
