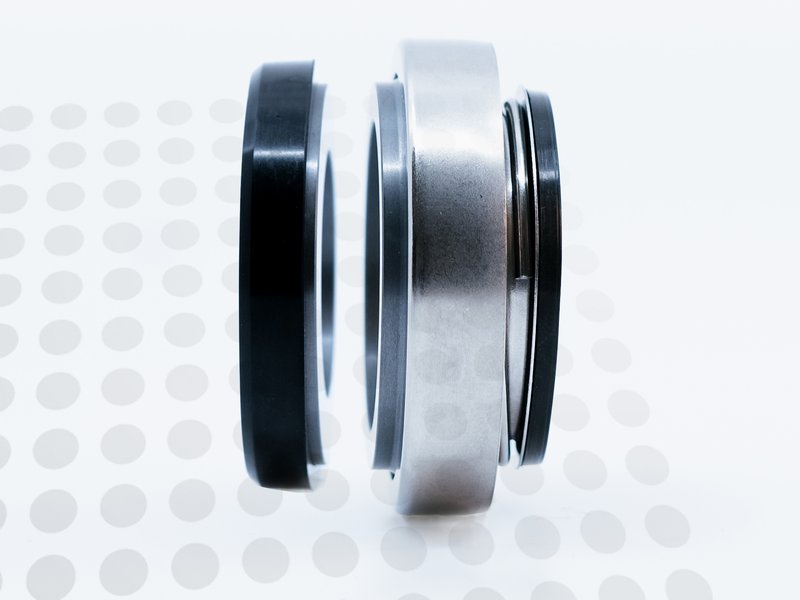

The Ricambi 0190-BV-QQP is part of the BV group and is designed for 19 mm shaft applications. It features a Silicon Carbide (SIC) rotary face paired with a Silicon Carbide (SIC) stationary face. This product uses NBR (NITRILE) elastomers. The maximum recommended operating temperature is 120°C. It is a compatible alternative to the Qseals 2C-QRB05STS-0190-SSN.
| Brand | Ricambi |
|---|---|
| Group | BV |
| SKU | 0190-BV-QQP |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.
Technical specifications
| Category | RUBBER BELLOW |
|---|---|

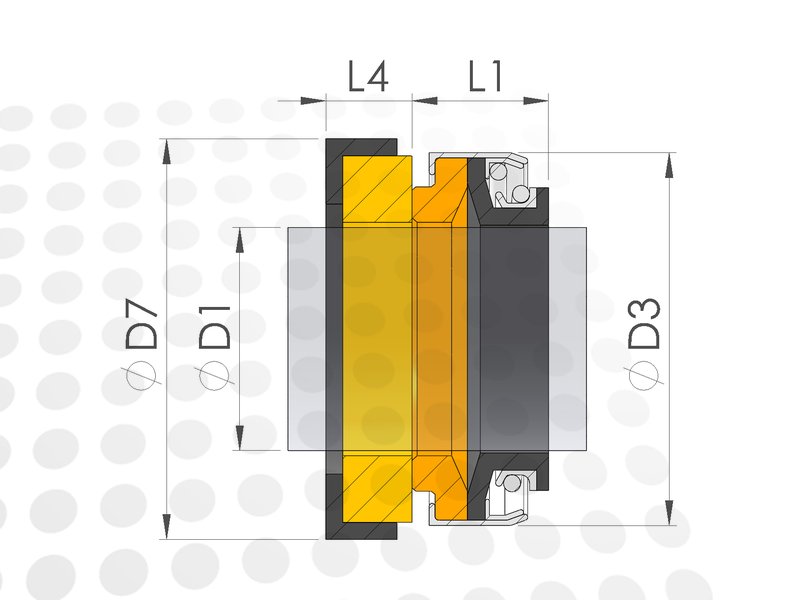

| Shaft size (D1) | 19 mm |
| Rotary face | Silicon Carbide (SIC) |
| Stationary face | Silicon Carbide (SIC) |
| Elastomers | NBR (NITRILE) |
| Rotary Outer Diameter (D3) | |
| Stationary Housing Diameter (D7) | |
| Rotary Working Length (L1) | |
| Stationary Bore Depth (L4) | |
| Temperature Limit | 120 °C |
| Pressure Limit | 16 bar |
Other size or material combination?
Search within the Ricambi BV product group.
Alternatives
These products are direct 1-to-1 replacements for the Ricambi 0190-BV-QQP, with superior performance, longer service life and better reliability.
| Brand | SKU |
|---|---|
| Qseals | 2C-QRB05STS-0190-SSN |
