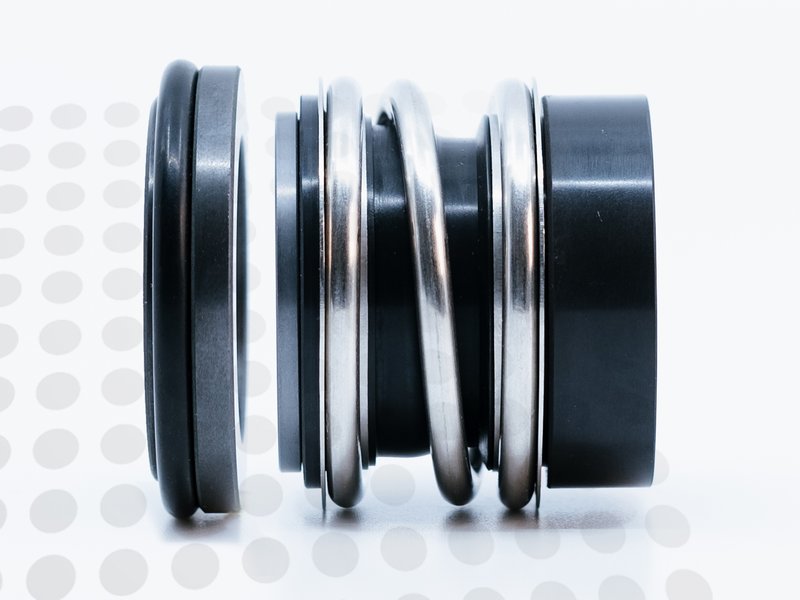

The Flowserve M412LZ001 is designed for 35 mm shaft applications. It features a Carbon (CAR) rotary face paired with a Tungsten Carbide (TC) stationary face. This product uses Viton (FKM VIT) elastomers. The maximum recommended operating temperature is 205°C. It is a compatible alternative to the Qseals 2C-QRB02ST06-0350-CTV-.
| Brand | Flowserve |
|---|---|
| SKU | M412LZ001 |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.
Technical specifications
| Category | RUBBER BELLOW |
|---|---|

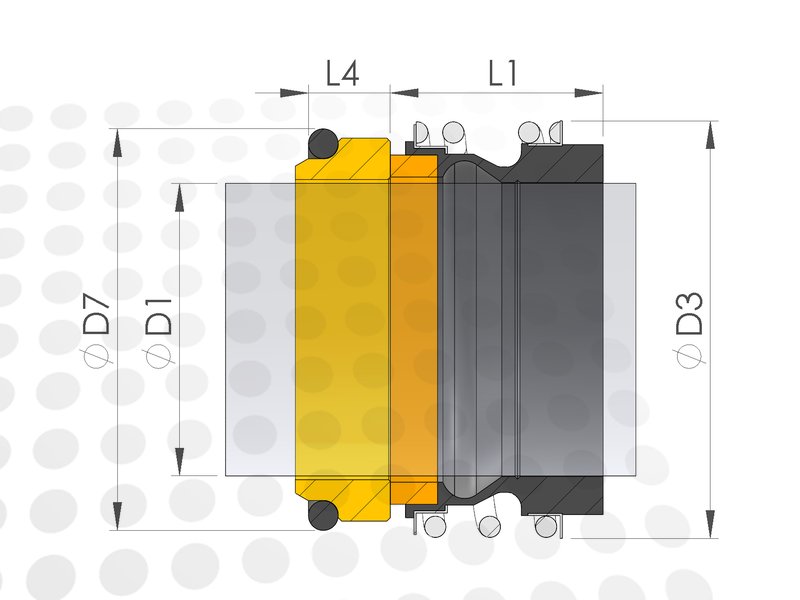

| Shaft size (D1) | 35 mm |
| Rotary face | Carbon (CAR) |
| Stationary face | Tungsten Carbide (TC) |
| Elastomers | Viton (FKM VIT) |
| Stationary Housing Diameter (D7) | |
| Stationary Bore Depth (L4) | |
| Temperature Limit | 205 °C |
Alternatives
These products are direct 1-to-1 replacements for the Flowserve M412LZ001, with superior performance, longer service life and better reliability.
| Brand | SKU |
|---|---|
| Qseals | 2C-QRB02ST06-0350-CTV- |
