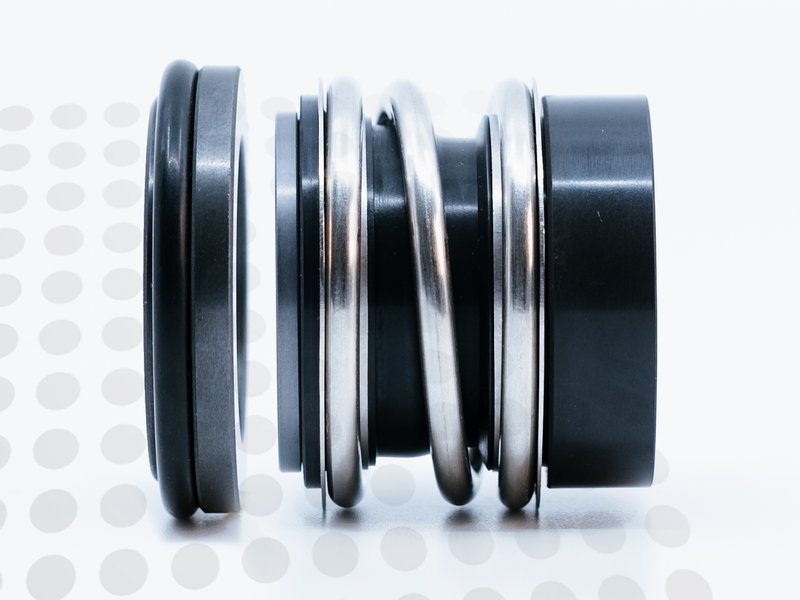

The Qseals 2C-QRB02ST06-0350-CTV- is part of the QRB02ST06 group and is designed for 35 mm shaft applications. It features a Carbon (CAR) rotary face paired with a Tungsten Carbide (TC) stationary face. This product uses Viton (FKM VIT) elastomers. The maximum recommended operating temperature is 205°C. It serves as a direct replacement for the AES N-B092SSU-AGZ1-0350, Flowserve M412LZ001, and Flowserve P1928SM035BRVGG.
| Brand | Qseals |
|---|---|
| Group | QRB02ST06 |
| SKU | 2C-QRB02ST06-0350-CTV- |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.

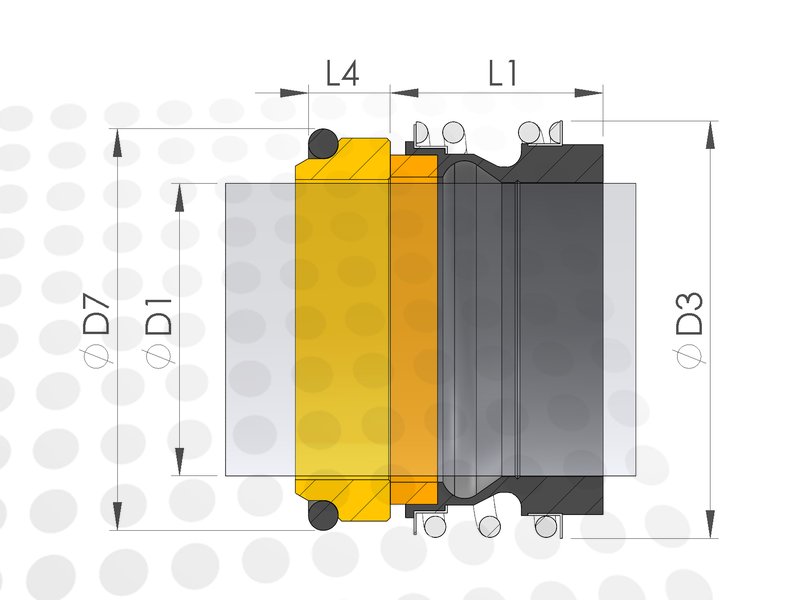

Technical specifications
| Category | RUBBER BELLOW |
|---|---|
| Shaft size (D1) | 35 mm |
| Rotary face | Carbon (CAR) |
| Stationary face | Tungsten Carbide (TC) |
| Elastomers | Viton (FKM VIT) |
| Stationary Housing Diameter (D7) | |
| Stationary Bore Depth (L4) | |
| Temperature Limit | 205 °C |
Other size or material combination?
Search within the Qseals QRB02ST06 product group.
Alternatives
The Qseals 2C-QRB02ST06-0350-CTV- is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | N-B092SSU-AGZ1-0350 |
| Flowserve | M412LZ001 |
| Flowserve | P1928SM035BRVGG |
Applications
The Qseals 2C-QRB02ST06-0350-CTV- can be applied in the following installations and equipment, where it provides reliable sealing and optimal operational reliability.
