The LATTY LI TN1 028 B U3 EP is part of the LI TN1 group and is designed for 28 mm shaft applications. It features a Stainless Steel (SS) rotary face paired with a Carbon (CAR) stationary face. This product uses EPDM (EPR) elastomers. The maximum recommended operating temperature is 140°C. It is a compatible alternative to the Qseals 1C-QPS11STS-0280-XCE.
Technical specifications
| Category | PARALLEL SPRING |
|---|---|

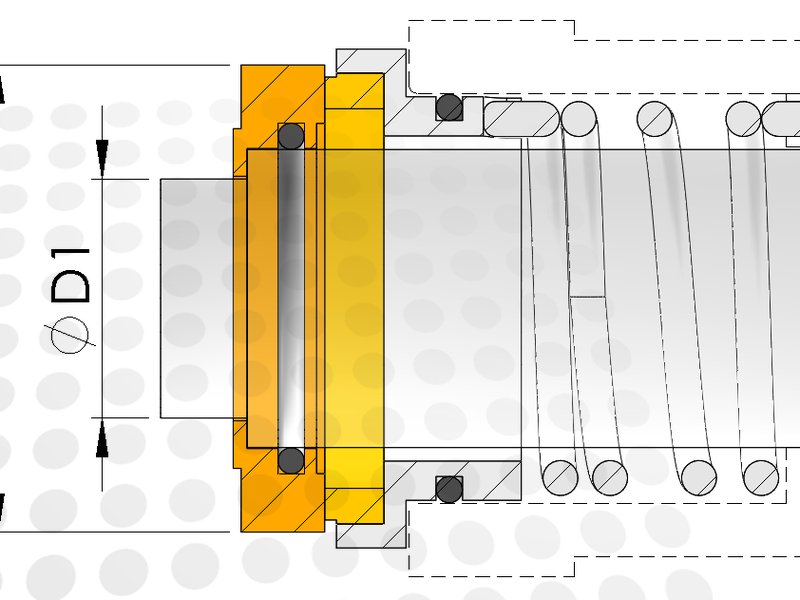

| Shaft size (D1) | 28 mm |
| Rotary face | Stainless Steel (SS) |
| Stationary face | Carbon (CAR) |
| Elastomers | EPDM (EPR) |
| Upper Shaftsize (D2) | |
| Rotary Outer Diameter (D3) | |
| Stationary Housing Diameter (D7) | |
| Temperature limit | 140 °C |
| Pressure limit | 20 bar |
Other size or material combination?
Search within the LATTY LI TN1 product group.
Alternatives
These products are direct 1-to-1 replacements for the LATTY LI TN1 028 B U3 EP, with superior performance, longer service life and better reliability.
| Brand | SKU |
|---|---|
| Qseals | 1C-QPS11STS-0280-XCE |
