The Qseals 1C-QPS11STS-0280-XCE is part of the QPS11STS group and is designed for 28 mm shaft applications. It features a Stainless Steel (SS) rotary face paired with a Carbon (CAR) stationary face. This product uses EPDM (EPR) elastomers. The maximum recommended operating temperature is 140°C. It serves as a direct replacement for the AES F-P09U-EAY1-0280, LATTY LI-10726, LATTY LI TN1 028 B U3 EP, and Vulcan 0280.94.E.O..
Technical specifications
| Category | PARALLEL SPRING |
|---|---|

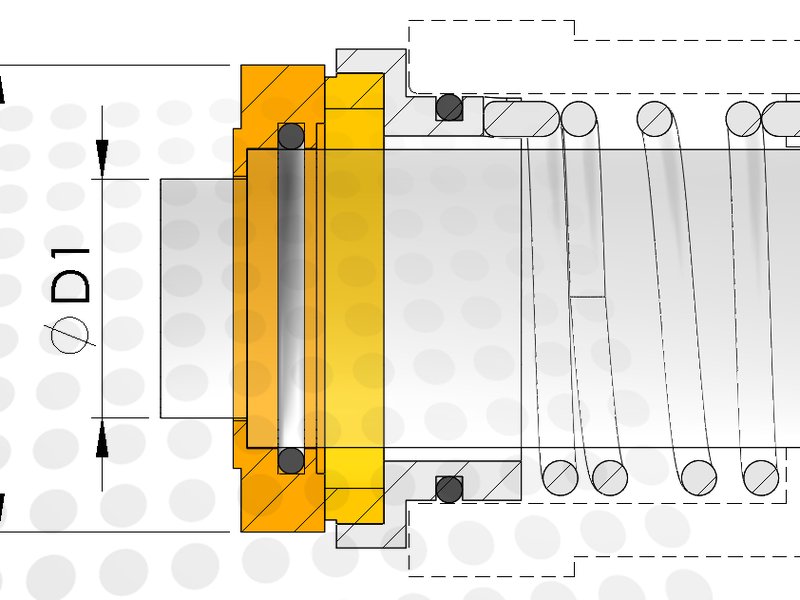

| Shaft size (D1) | 28 mm |
| Rotary face | Stainless Steel (SS) |
| Stationary face | Carbon (CAR) |
| Elastomers | EPDM (EPR) |
| Upper Shaftsize (D2) | |
| Rotary Outer Diameter (D3) | |
| Stationary Housing Diameter (D7) | |
| Temperature limit | 140 °C |
| Pressure limit | 20 bar |
Other size or material combination?
Search within the Qseals QPS11STS product group.
Alternatives
The Qseals 1C-QPS11STS-0280-XCE is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | F-P09U-EAY1-0280 |
| LATTY | LI-10726 |
| LATTY | LI TN1 028 B U3 EP |
| Vulcan | 0280.94.E.O. |
Applications
The Qseals 1C-QPS11STS-0280-XCE can be applied in the following installations and equipment, where it provides reliable sealing and optimal operational reliability.
| Brand | SKU |
|---|---|
| Tuchenhagen | ZG 21 D / MA13S2A-2T |
