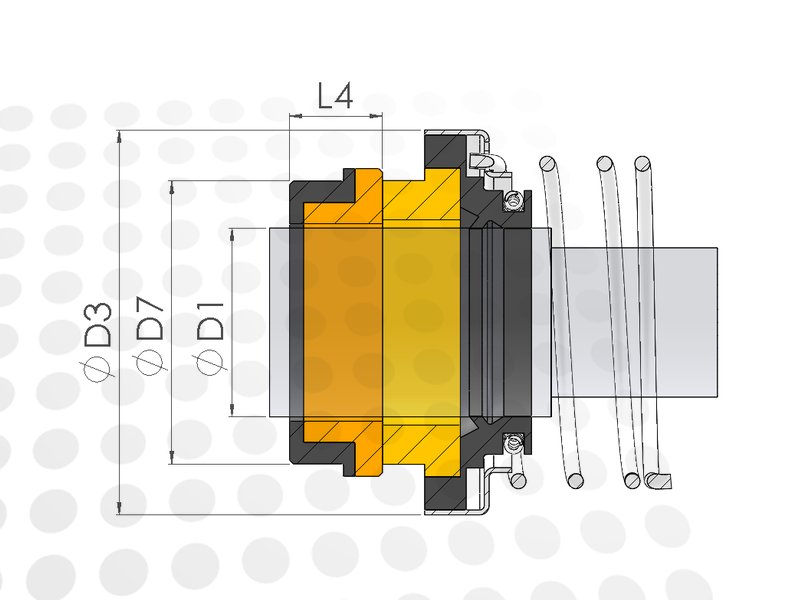

The Qseals 1C-QAPV02STS-0200-CXN is part of the QAPV02STS group and is designed for 20 mm shaft applications. It features a carbon rotary face paired with a stainless steel stationary face. This product uses NBR (NITRILE) elastomers. The maximum recommended operating temperature is 120°C. It serves as a direct replacement for the AES F-T0RVU-AEX1-0200, APV 106075, APV 773115, and 4 other alternatives.
| Brand | Qseals |
|---|---|
| Group | QAPV02STS |
| SKU | 1C-QAPV02STS-0200-CXN |
No commitment. Receive a price and technical data sheet within 24 hours.
Technical specifications
| Category | PUMP SPECIFIC |
|---|---|
| Shaft size | 20 mm |
| Rotary face | Carbon |
| Stationary face | Stainless Steel |
| Elastomers | NBR |
| Rotary Outer Diameter | |
| Stationary Housing Diameter | |
| Stationary Bore Depth | |
| Temperature Limit | 120 °C |
| Pressure Limit | 20 bar |
Alternatives
The Qseals 1C-QAPV02STS-0200-CXN is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | F-T0RVU-AEX1-0200 |
| APV | 106075 |
| APV | 773115 |
| Fluiten | APZ020 SZ51GQQ |
| SPX | 106075 |
| SPX | 773115 |
| Vulcan | 0200.29.N.Q. |
Applications
The Qseals 1C-QAPV02STS-0200-CXN can be applied in the following installations and equipment, where it provides reliable sealing and optimal operational reliability.
