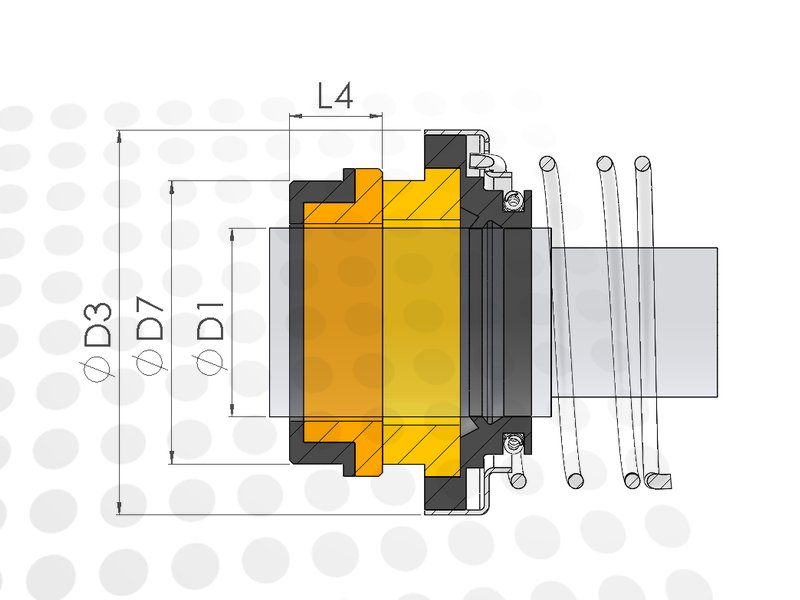

The Qseals 1C-QAPV02STS-0250-ZZN is part of the QAPV02STS group and is designed for 25 mm shaft applications. It features a sintered silicon carbide rotary face paired with a sintered silicon carbide stationary face. This product uses NBR (NITRILE) elastomers. The maximum recommended operating temperature is 120°C. It serves as a direct replacement for the AES F-T0RVU-JJX1-0250, Fluiten APZ025 U31U31GQQ, and Vulcan 0250.29.N.S..
| Brand | Qseals |
|---|---|
| Group | QAPV02STS |
| SKU | 1C-QAPV02STS-0250-ZZN |
No commitment. Receive a price and technical data sheet within 24 hours.
Technical specifications
| Category | PUMP SPECIFIC |
|---|---|
| Shaft size | 25 mm |
| Rotary face | Sintered Silicon Carbide |
| Stationary face | Sintered Silicon Carbide |
| Elastomers | NBR |
| Rotary Outer Diameter | |
| Stationary Housing Diameter | |
| Stationary Bore Depth | |
| Temperature Limit | 120 °C |
| Pressure Limit | 20 bar |
Alternatives
The Qseals 1C-QAPV02STS-0250-ZZN is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | F-T0RVU-JJX1-0250 |
| Fluiten | APZ025 U31U31GQQ |
| Vulcan | 0250.29.N.S. |
Applications
The Qseals 1C-QAPV02STS-0250-ZZN can be applied in the following installations and equipment, where it provides reliable sealing and optimal operational reliability.
