The Qseals 1C-QAPV02STS-0250-ZZV is part of the QAPV02STS group and is designed for 25 mm shaft applications. It features a Sintered Silicon Carbide (SSIC) rotary face paired with a Sintered Silicon Carbide (SSIC) stationary face. This product uses Viton (FKM VIT) elastomers. The maximum recommended operating temperature is 205°C. It serves as a direct replacement for the AES F-T0RVU-JJZ1-0250, Fluiten APZ025 U31U31VQQ, and Vulcan 0250.29.V.S..
| Brand | Qseals |
|---|---|
| Group | QAPV02STS |
| SKU | 1C-QAPV02STS-0250-ZZV |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.
Technical specifications
| Category | PUMP SPECIFIC |
|---|---|

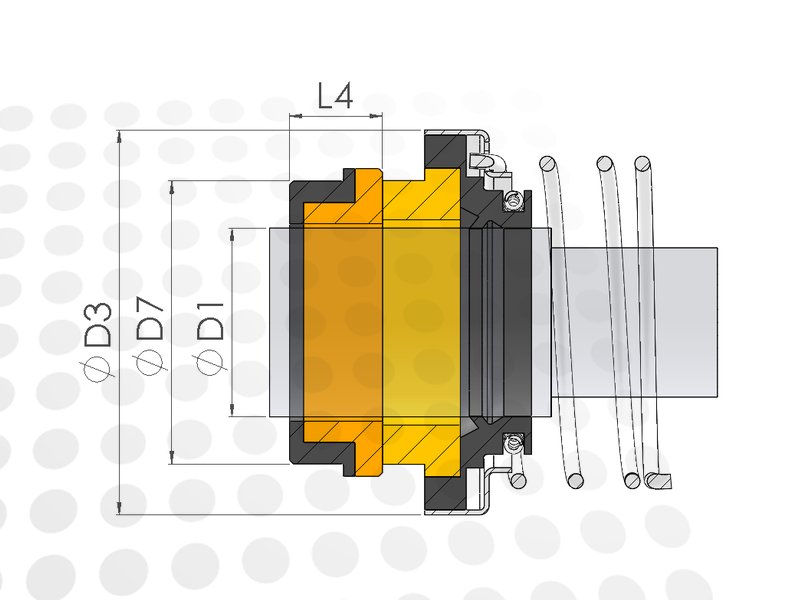

| Shaft size (D1) | 25 mm |
| Rotary face | Sintered Silicon Carbide (SSIC) |
| Stationary face | Sintered Silicon Carbide (SSIC) |
| Elastomers | Viton (FKM VIT) |
| Rotary Outer Diameter (D3) | |
| Stationary Housing Diameter (D7) | |
| Stationary Bore Depth (L4) | |
| Temperature Limit | 205 °C |
| Pressure Limit | 20 bar |
Other size or material combination?
Search within the Qseals QAPV02STS product group.
Alternatives
The Qseals 1C-QAPV02STS-0250-ZZV is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | F-T0RVU-JJZ1-0250 |
| Fluiten | APZ025 U31U31VQQ |
| Vulcan | 0250.29.V.S. |
