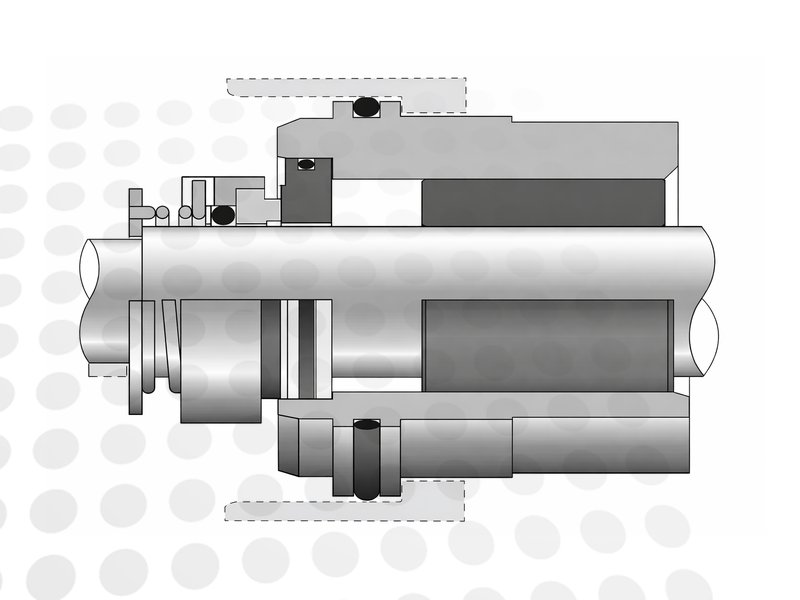

The Qseals 1C-QCSF2-0220-CXV is part of the QCSF2 group and is designed for 22 mm shaft applications. It features a carbon rotary face paired with a stainless steel stationary face. This product uses Viton (FKM VIT) elastomers. The maximum recommended operating temperature is 205°C. It serves as a direct replacement for the AES F-T01FIU-AEZ1-0220 and Fristam Part No 0817310008.
| Brand | Qseals |
|---|---|
| Group | QCSF2 |
| SKU | 1C-QCSF2-0220-CXV |
No commitment. Receive a price and technical data sheet within 24 hours.
Technical specifications
| Category | PUMP SPECIFIC |
|---|---|
| Shaft size | 22 mm |
| Rotary face | Carbon |
| Stationary face | Stainless Steel |
| Elastomers | Viton |
| Temperature Limit | 205 °C |
| Pressure Limit | 20 bar |
Alternatives
The Qseals 1C-QCSF2-0220-CXV is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | F-T01FIU-AEZ1-0220 |
| Fristam | Part No 0817310008 |
Applications
The Qseals 1C-QCSF2-0220-CXV can be applied in the following installations and equipment, where it provides reliable sealing and optimal operational reliability.
| Brand | SKU |
|---|---|
| Fristam Pumpen | FP 732 F seal 9.317/1 |
| Brand | SKU |
|---|
