The Qseals 1C-QHILGE01STS-0190-CSE-R is part of the QHILGE01STS group and is designed for 19 mm shaft applications. It features a Carbon (CAR) rotary face paired with a Silicon Carbide (SIC) stationary face. This product uses EPDM (EPR) elastomers. The maximum recommended operating temperature is 140°C. It serves as a direct replacement for the AES F-T03HU-ADXR-0190, AES F-T03HU-ADYR-0190, AES F-T03HU-ADZR-0190, and 4 other alternatives.
| Brand | Qseals |
|---|---|
| Group | QHILGE01STS |
| SKU | 1C-QHILGE01STS-0190-CSE-R |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.
Technical specifications
| Category | PUMP SPECIFIC |
|---|---|

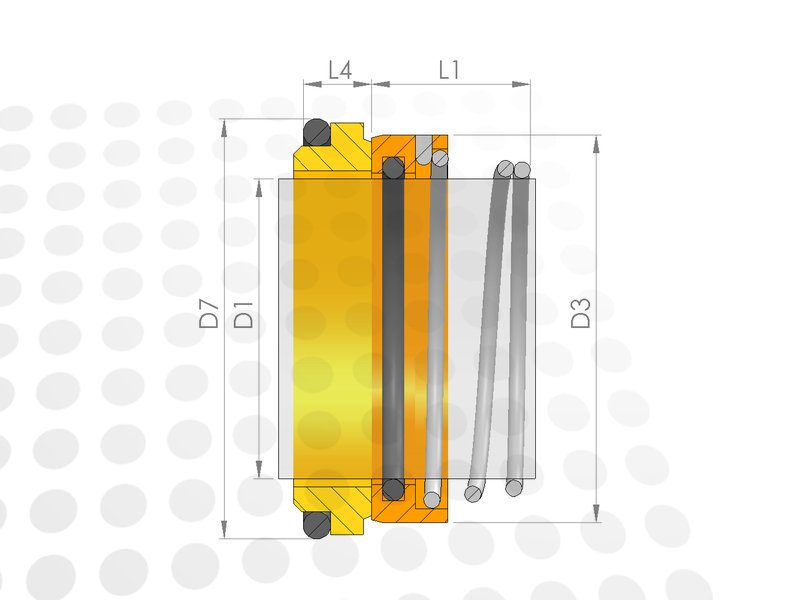

| Shaft size (D1) | 19 mm |
| Rotary face | Carbon (CAR) |
| Stationary face | Silicon Carbide (SIC) |
| Elastomers | EPDM (EPR) |
| Rotary Outer Diameter (D3) | |
| Stationary Housing Diameter (D7) | |
| Rotary Working Length (L1) | |
| Stationary Bore Depth (L4) | |
| Temperature Limit | 140 °C |
| Pressure Limit | 20 bar |
Other size or material combination?
Search within the Qseals QHILGE01STS product group.
Applications
The Qseals 1C-QHILGE01STS-0190-CSE-R can be applied in the following installations and equipment, where it provides reliable sealing and optimal operational reliability.
Alternatives
The Qseals 1C-QHILGE01STS-0190-CSE-R is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | F-T03HU-ADXR-0190 |
| AES | F-T03HU-ADYR-0190 |
| AES | F-T03HU-ADZR-0190 |
| Grundfos | 95086333 |
| Hilge | 3A1-001-19-aiE-03 |
| Hilge | 3A1-001-19-Kae-03 |
| Hilge | 95086333 |
