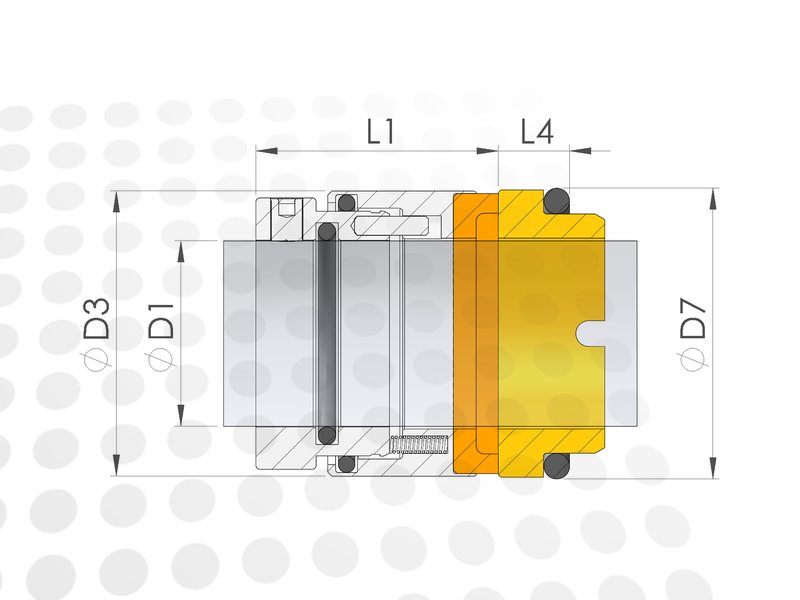

The Qseals 1C-QMS02ST46-0280-SSE is part of the QMS02ST46 group and is designed for 28 mm shaft applications. It features a silicon carbide rotary face paired with a silicon carbide stationary face. This product uses EPDM (EPR) elastomers. The maximum recommended operating temperature is 140°C. It serves as a direct replacement for the AES N-M010SL-DDY1-0280 and Grundfos 96433681 (DQQE).
| Brand | Qseals |
|---|---|
| Group | QMS02ST46 |
| SKU | 1C-QMS02ST46-0280-SSE |
No commitment. Receive a price and technical data sheet within 24 hours.
Technical specifications
| Category | MULTI SPRING |
|---|---|
| Shaft size | 28 mm |
| Rotary face | Silicon Carbide |
| Stationary face | Silicon Carbide |
| Elastomers | EPDM |
| Stationary Housing Diameter | |
| Stationary Bore Depth | |
| Temperature Limit | 140 °C |
| Pressure Limit | 25 bar |
Alternatives
The Qseals 1C-QMS02ST46-0280-SSE is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | N-M010SL-DDY1-0280 |
| Grundfos | 96433681 (DQQE) |
