The Qseals 1C-QPS07-0220-CZV is part of the QPS07 group and is designed for 22 mm shaft applications. It features a Carbon (CAR) rotary face paired with a Sintered Silicon Carbide (SSIC) stationary face. This product uses Viton (FKM VIT) elastomers. The maximum recommended operating temperature is 205°C.
Technical specifications
| Category | PUMP SPECIFIC |
|---|---|

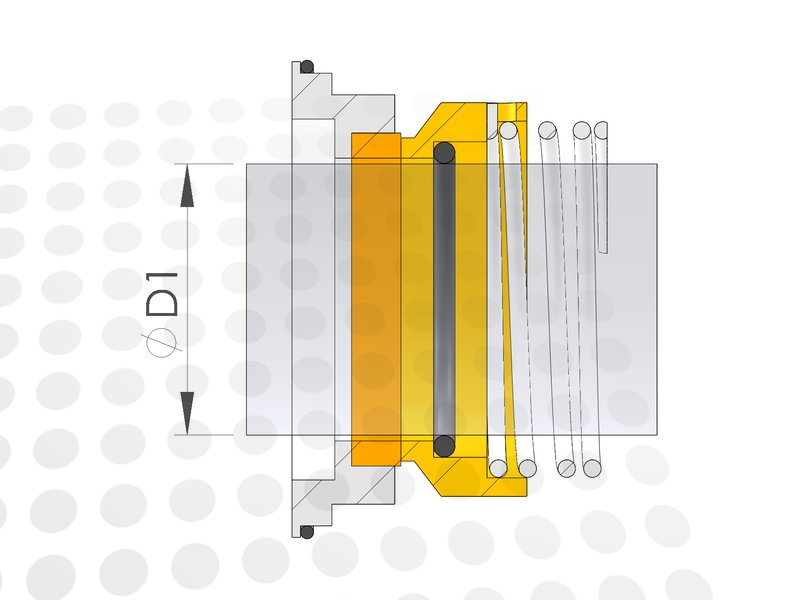

| Shaft size (D1) | 22 mm |
| Rotary face | Carbon (CAR) |
| Stationary face | Sintered Silicon Carbide (SSIC) |
| Elastomers | Viton (FKM VIT) |
| Temperature limit | 205 °C |
| Pressure limit | 25 bar |
