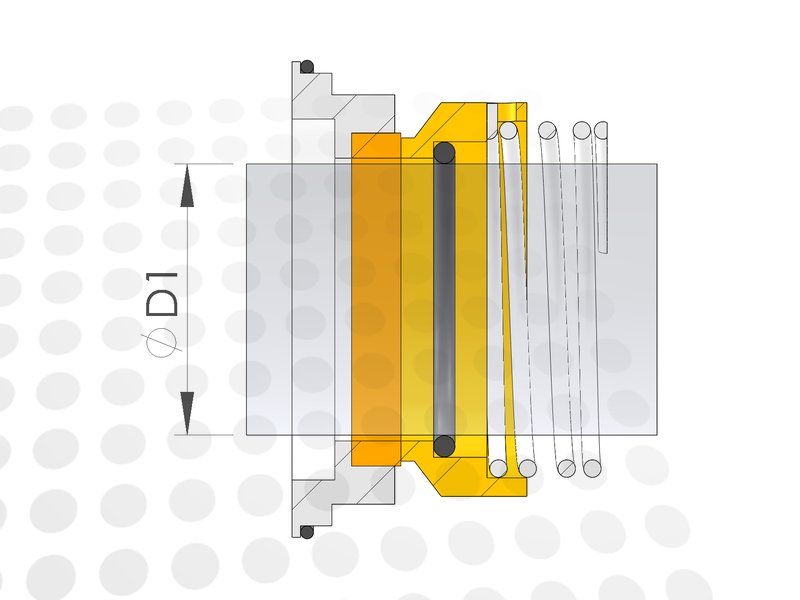

The Qseals 1C-QPS07-0270-ZZE is part of the QPS07 group and is designed for 27 mm shaft applications. It features a Sintered Silicon Carbide (SSIC) rotary face paired with a Sintered Silicon Carbide (SSIC) stationary face. This product uses EPDM (EPR) elastomers. The maximum recommended operating temperature is 140°C. It serves as a direct replacement for the AES F-P07U-JJY1-0270, Alfa Laval 31438-0206-4, LATTY LI-10108, and LATTY LI AL3 027 U3 U3 EP.
Technical specifications
| Category | PUMP SPECIFIC |
|---|---|
| Shaft size (D1) | 27 mm |
| Rotary face | Sintered Silicon Carbide (SSIC) |
| Stationary face | Sintered Silicon Carbide (SSIC) |
| Elastomers | EPDM (EPR) |
| Temperature limit | 140 °C |
| Pressure limit | 25 bar |
Other size or material combination?
Search within the Qseals QPS07 product group.
Alternatives
The Qseals 1C-QPS07-0270-ZZE is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | F-P07U-JJY1-0270 |
| Alfa Laval | 31438-0206-4 |
| LATTY | LI-10108 |
| LATTY | LI AL3 027 U3 U3 EP |
