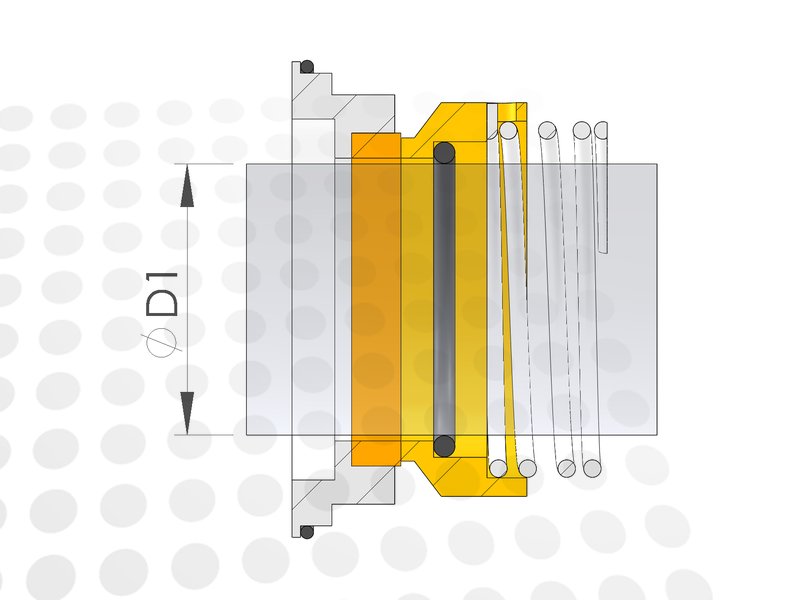

The Qseals 1C-QPS07-0270-ZZV is part of the QPS07 group and is designed for 27 mm shaft applications. It features a sintered silicon carbide rotary face paired with a sintered silicon carbide stationary face. This product uses Viton (FKM VIT) elastomers. The maximum recommended operating temperature is 205°C. It serves as a direct replacement for the AES F-P07U-JJZ1-0270 and Alfa Laval 31438-0206-6.
| Brand | Qseals |
|---|---|
| Group | QPS07 |
| SKU | 1C-QPS07-0270-ZZV |
No commitment. Receive a price and technical data sheet within 24 hours.
Technical specifications
| Category | PUMP SPECIFIC |
|---|---|
| Shaft size | 27 mm |
| Rotary face | Sintered Silicon Carbide |
| Stationary face | Sintered Silicon Carbide |
| Elastomers | Viton |
| Temperature Limit | 205 °C |
| Pressure Limit | 25 bar |
Alternatives
The Qseals 1C-QPS07-0270-ZZV is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | F-P07U-JJZ1-0270 |
| Alfa Laval | 31438-0206-6 |
