The Qseals 1C-QPS07-0350-ZZE is part of the QPS07 group and is designed for 35 mm shaft applications. It features a Sintered Silicon Carbide (SSIC) rotary face paired with a Sintered Silicon Carbide (SSIC) stationary face. This product uses EPDM (EPR) elastomers. The maximum recommended operating temperature is 140°C. It serves as a direct replacement for AES, 9 Alfa Laval models, and 2 LATTY models.
Technical specifications
| Category | PUMP SPECIFIC |
|---|---|

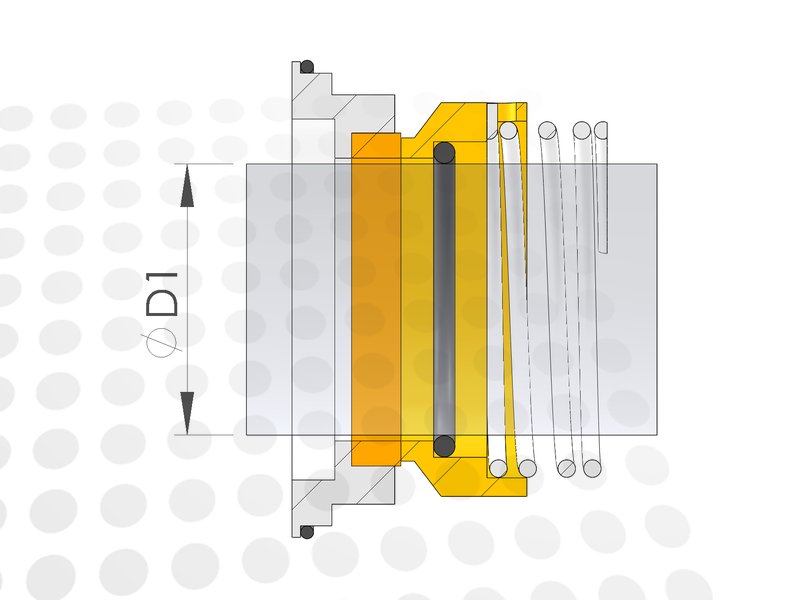

| Shaft size (D1) | 35 mm |
| Rotary face | Sintered Silicon Carbide (SSIC) |
| Stationary face | Sintered Silicon Carbide (SSIC) |
| Elastomers | EPDM (EPR) |
| Temperature limit | 140 °C |
| Pressure limit | 25 bar |
Other size or material combination?
Search within the Qseals QPS07 product group.
Alternatives
The Qseals 1C-QPS07-0350-ZZE is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
