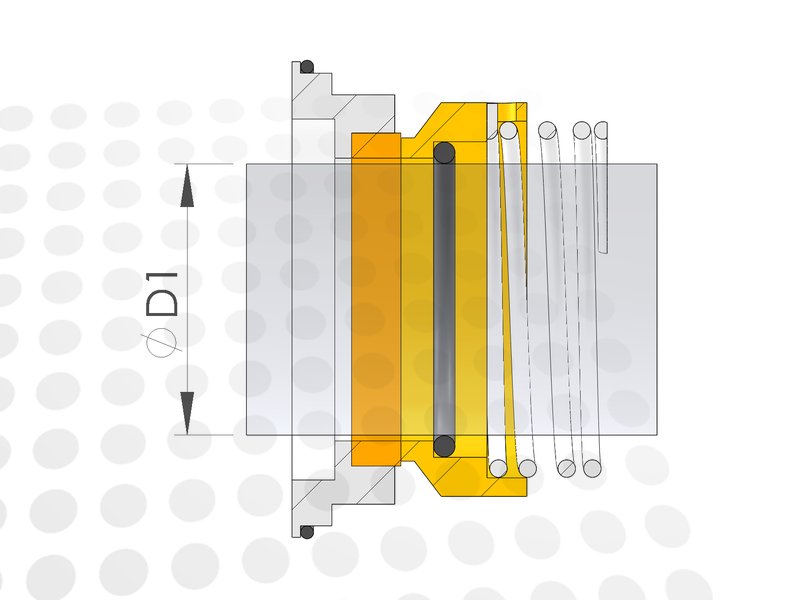

The Qseals 1C-QPS07-0350-ZZN is part of the QPS07 group and is designed for 35 mm shaft applications. It features a sintered silicon carbide rotary face paired with a sintered silicon carbide stationary face. This product uses NBR (NITRILE) elastomers. The maximum recommended operating temperature is 120°C. It serves as a direct replacement for the AES F-P07U-JJX1-0350, Alfa Laval 9612-1296-06, Alfa Laval 9612129606, and 2 other alternatives.
| Brand | Qseals |
|---|---|
| Group | QPS07 |
| SKU | 1C-QPS07-0350-ZZN |
No commitment. Receive a price and technical data sheet within 24 hours.
Technical specifications
| Category | PUMP SPECIFIC |
|---|---|
| Shaft size | 35 mm |
| Rotary face | Sintered Silicon Carbide |
| Stationary face | Sintered Silicon Carbide |
| Elastomers | NBR |
| Temperature Limit | 120 °C |
| Pressure Limit | 25 bar |
Alternatives
The Qseals 1C-QPS07-0350-ZZN is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | F-P07U-JJX1-0350 |
| Alfa Laval | 9612-1296-06 |
| Alfa Laval | 9612129606 |
| Alfa Laval | 9612-1296-30 |
| Alfa Laval | 9612129630 |
Applications
The Qseals 1C-QPS07-0350-ZZN can be applied in the following installations and equipment, where it provides reliable sealing and optimal operational reliability.
