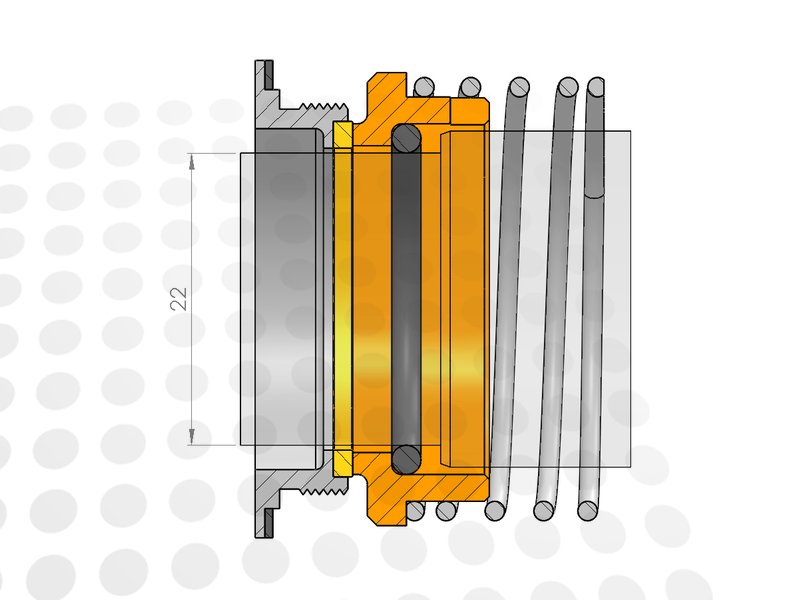

The Qseals 1C-QPS07B-0220-ZZE is part of the QPS07B group and is designed for 22 mm shaft applications. It features a sintered silicon carbide rotary face paired with a sintered silicon carbide stationary face. This product uses EPDM (EPR) elastomers. The maximum recommended operating temperature is 140°C. It serves as a direct replacement for the AES F-P07U-JJY1-0220-B, Alfa Laval 9612-4392-07, Alfa Laval 9612439207, and 4 other alternatives.
| Brand | Qseals |
|---|---|
| Group | QPS07B |
| SKU | 1C-QPS07B-0220-ZZE |
No commitment. Receive a price and technical data sheet within 24 hours.
Technical specifications
| Category | PUMP SPECIFIC |
|---|---|
| Shaft size | 22 mm |
| Rotary face | Sintered Silicon Carbide |
| Stationary face | Sintered Silicon Carbide |
| Elastomers | EPDM |
| Temperature Limit | 140 °C |
| Pressure Limit | 25 bar |
Alternatives
The Qseals 1C-QPS07B-0220-ZZE is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | F-P07U-JJY1-0220-B |
| Alfa Laval | 9612-4392-07 |
| Alfa Laval | 9612439207 |
| Alfa Laval | 9612-4393-01 |
| Alfa Laval | 9612439301 |
| LATTY | LI-10105 |
| LATTY | LI AL2 022 U3 U3 EP |
Applications
The Qseals 1C-QPS07B-0220-ZZE can be applied in the following installations and equipment, where it provides reliable sealing and optimal operational reliability.
| Brand | SKU |
|---|---|
| Alfa Laval | FM-OS |
| Alfa Laval | FM0 |
| Alfa Laval | FM1 |
| Alfa Laval | FM1A |
| Alfa Laval | FM1AE |
| Alfa Laval | FM2 |
| Brand | SKU |
|---|---|
| Alfa Laval | FM2A |
| Alfa Laval | FM3 |
| Alfa Laval | FM3A |
| Alfa Laval | FM4 |
| Alfa Laval | FM4A |
