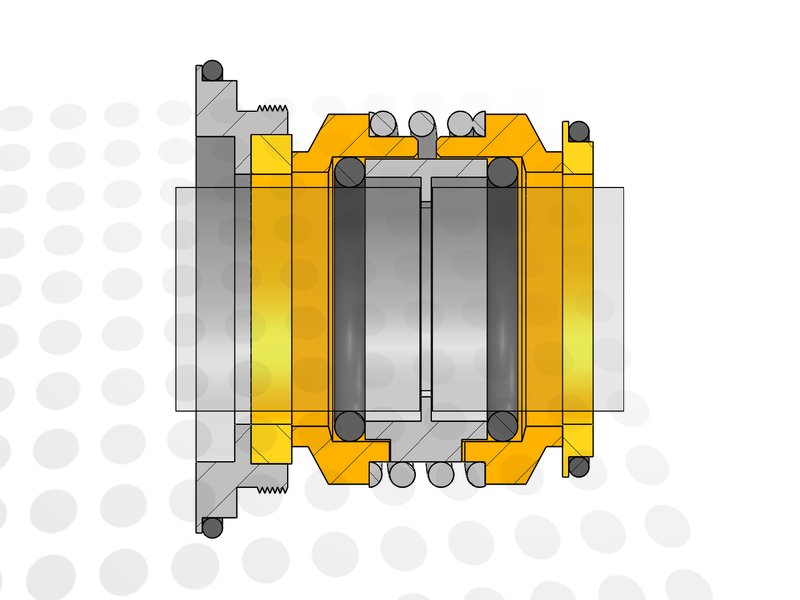

The Qseals 1C-QPS07D-0220-CXE-CXE is part of the QPS07D group and is designed for 22 mm shaft applications. It features a Carbon (CAR) rotary face paired with a Stainless Steel (SS) stationary face. This product uses EPDM (EPR) elastomers. The maximum recommended operating temperature is 140°C.
Technical specifications
| Category | PUMP SPECIFIC |
|---|---|
| Shaft size (D1) | 22 mm |
| Rotary face | Carbon (CAR) |
| Stationary face | Stainless Steel (SS) |
| Elastomers | EPDM (EPR) |
| Outer rotary face | Carbon (CAR) |
| Outer stationary face | Stainless Steel (SS) |
| Outer elastomer | EPDM (EPDM) |
| Temperature limit | 140 °C |
| Pressure limit | 25 bar |
Other size or material combination?
Search within the Qseals QPS07D product group.
