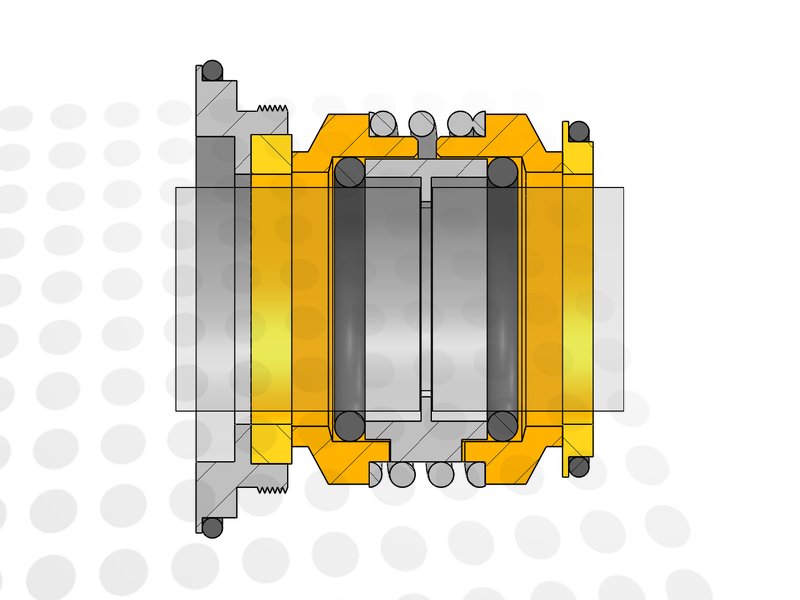

The Qseals 1C-QPS07D-0220-CXN is part of the QPS07D group and is designed for 22 mm shaft applications. It features a Carbon (CAR) rotary face paired with a Stainless Steel (SS) stationary face. This product uses NBR (NITRILE) elastomers. The maximum recommended operating temperature is 120°C. It serves as a direct replacement for the AES F-P07U-AEX1-0220-D and Alfa Laval 31452-0104-2.
Technical specifications
| Category | PUMP SPECIFIC |
|---|---|
| Shaft size (D1) | 22 mm |
| Rotary face | Carbon (CAR) |
| Stationary face | Stainless Steel (SS) |
| Elastomers | NBR (NITRILE) |
| Temperature limit | 120 °C |
| Pressure limit | 25 bar |
Other size or material combination?
Search within the Qseals QPS07D product group.
Alternatives
The Qseals 1C-QPS07D-0220-CXN is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | F-P07U-AEX1-0220-D |
| Alfa Laval | 31452-0104-2 |
Applications
The Qseals 1C-QPS07D-0220-CXN can be applied in the following installations and equipment, where it provides reliable sealing and optimal operational reliability.
