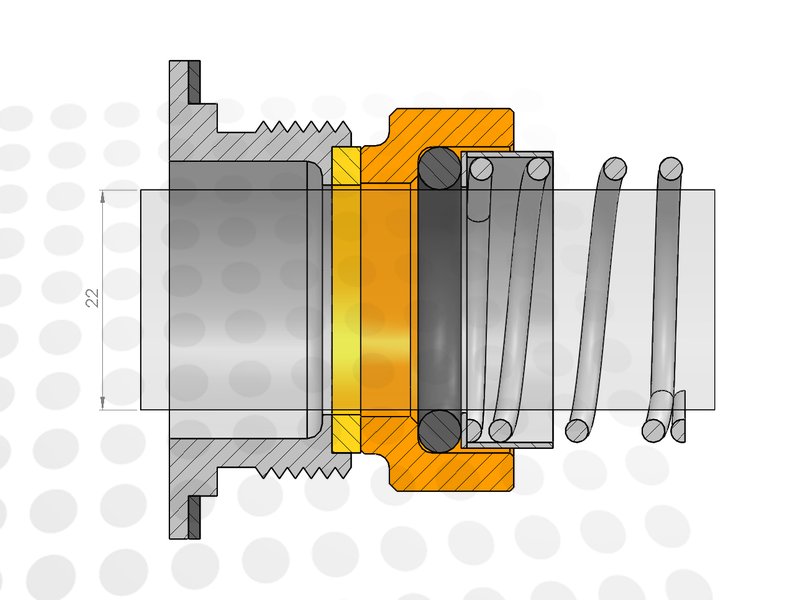

The Qseals 1C-QPS07E-0220-CZV is part of the QPS07E group and is designed for 22 mm shaft applications. It features a carbon rotary face paired with a sintered silicon carbide stationary face. This product uses Viton (FKM VIT) elastomers. The maximum recommended operating temperature is 205°C. It serves as a direct replacement for the AES F-P07U-AJZ1-0220, AES F-P07U-AJZ1-0220-D, Alfa Laval 31437-0213-5, and 3 other alternatives.
| Brand | Qseals |
|---|---|
| Group | QPS07E |
| SKU | 1C-QPS07E-0220-CZV |
No commitment. Receive a price and technical data sheet within 24 hours.
Technical specifications
| Category | PUMP SPECIFIC |
|---|---|
| Shaft size | 22 mm |
| Rotary face | Carbon |
| Stationary face | Sintered Silicon Carbide |
| Elastomers | Viton |
| Temperature Limit | 205 °C |
| Pressure Limit | 25 bar |
Alternatives
The Qseals 1C-QPS07E-0220-CZV is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | F-P07U-AJZ1-0220 |
| AES | F-P07U-AJZ1-0220-D |
| Alfa Laval | 31437-0213-5 |
| Alfa Laval | 9612-4391-04 |
| Alfa Laval | 9612439104 |
| Vulcan | 0220.93B.V.D. |
Applications
The Qseals 1C-QPS07E-0220-CZV can be applied in the following installations and equipment, where it provides reliable sealing and optimal operational reliability.
