The Qseals 1C-QPS11STS-0180-XCV is part of the QPS11STS group and is designed for 18 mm shaft applications. It features a Stainless Steel (SS) rotary face paired with a Carbon (CAR) stationary face. This product uses Viton (FKM VIT) elastomers. The maximum recommended operating temperature is 205°C. It serves as a direct replacement for the AES F-P09U-EAZ1-0180 and Vulcan 0180.94.V.O..
Technical specifications
| Category | PARALLEL SPRING |
|---|---|

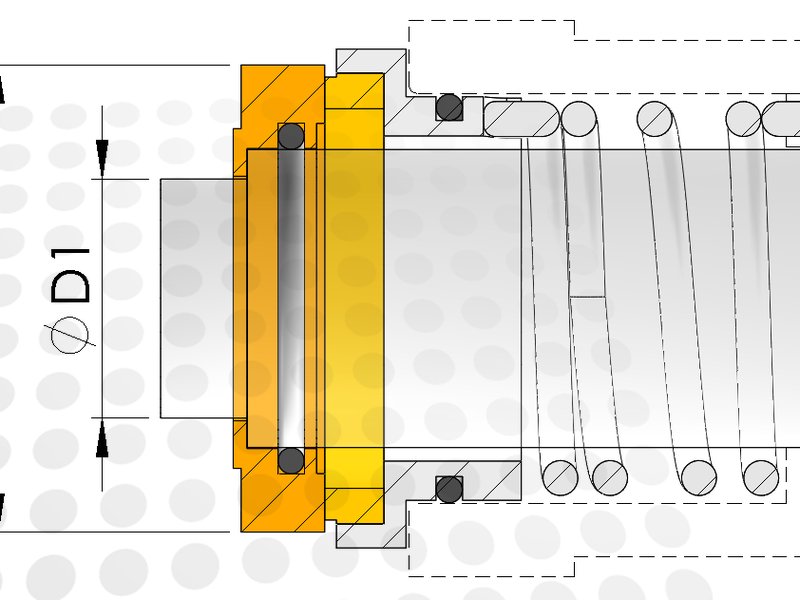

| Shaft size (D1) | 18 mm |
| Rotary face | Stainless Steel (SS) |
| Stationary face | Carbon (CAR) |
| Elastomers | Viton (FKM VIT) |
| Upper Shaftsize (D2) | |
| Rotary Outer Diameter (D3) | |
| Stationary Housing Diameter (D7) | |
| Temperature limit | 205 °C |
| Pressure limit | 20 bar |
Other size or material combination?
Search within the Qseals QPS11STS product group.
Alternatives
The Qseals 1C-QPS11STS-0180-XCV is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | F-P09U-EAZ1-0180 |
| Vulcan | 0180.94.V.O. |
