The Qseals 1C-QPS14STS-0220-SCE is part of the QPS14STS group and is designed for 22 mm shaft applications. It features a Silicon Carbide (SIC) rotary face paired with a Carbon (CAR) stationary face. This product uses EPDM (EPR) elastomers. The maximum recommended operating temperature is 140°C. It serves as a direct replacement for the AES N-P0LXB-DAY1-0260 and Lowara 0022 323 00.
Technical specifications

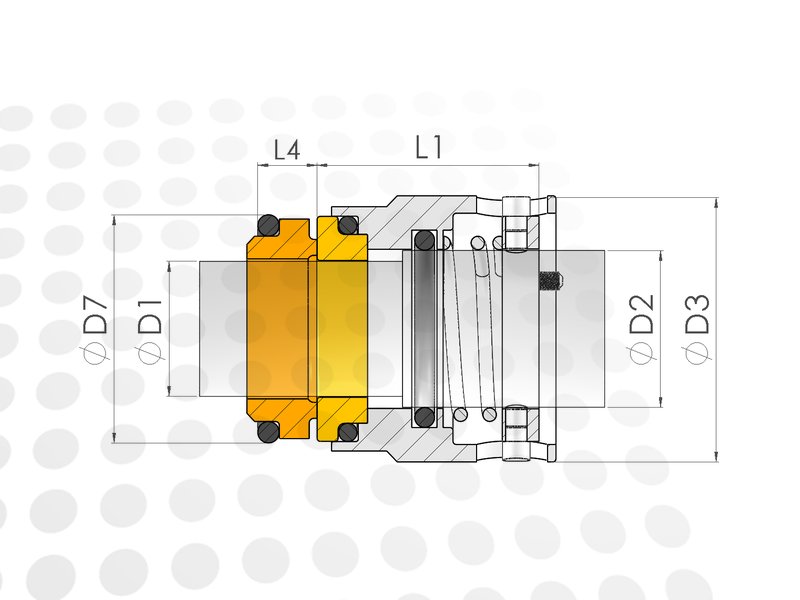

| Category | PARALLEL SPRING |
|---|---|
| Shaft size (D1) | 22 mm |
| Rotary face | Silicon Carbide (SIC) |
| Stationary face | Carbon (CAR) |
| Elastomers | EPDM (EPR) |
| Upper Shaftsize (D2) | |
| Temperature limit | 140 °C |
| Pressure limit | 20 bar |
Other size or material combination?
Search within the Qseals QPS14STS product group.
Applications
The Qseals 1C-QPS14STS-0220-SCE can be applied in the following installations and equipment, where it provides reliable sealing and optimal operational reliability.
Alternatives
The Qseals 1C-QPS14STS-0220-SCE is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | N-P0LXB-DAY1-0260 |
| Lowara | 0022 323 00 |
