The Qseals 1C-QRB15ST09-0530-CZE is part of the QRB15ST09 group and is designed for 53 mm shaft applications. It features a Carbon (CAR) rotary face paired with a Sintered Silicon Carbide (SSIC) stationary face. This product uses EPDM (EPR) elastomers. The maximum recommended operating temperature is 140°C. It serves as a direct replacement for the AES F-B09DU-AJY1-0530 and Alfa Laval 31801-2469-2.
Technical specifications
| Category | PUMP SPECIFIC |
|---|---|

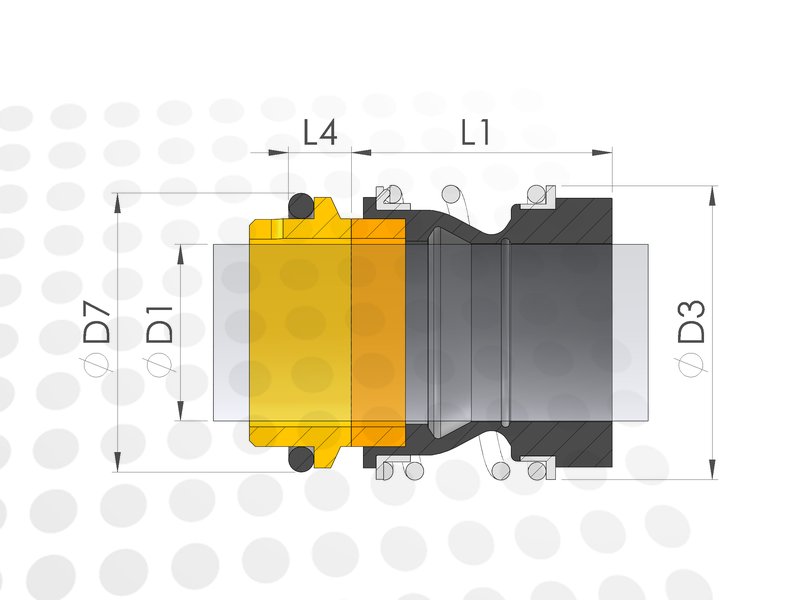

| Shaft size (D1) | 53 mm |
| Rotary face | Carbon (CAR) |
| Stationary face | Sintered Silicon Carbide (SSIC) |
| Elastomers | EPDM (EPR) |
| Stationary Housing Diameter (D7) | |
| Stationary Bore Depth (L4) | |
| Temperature limit | 140 °C |
| Pressure limit | 20 bar |
Other size or material combination?
Search within the Qseals QRB15ST09 product group.
Alternatives
The Qseals 1C-QRB15ST09-0530-CZE is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | F-B09DU-AJY1-0530 |
| Alfa Laval | 31801-2469-2 |
Applications
The Qseals 1C-QRB15ST09-0530-CZE can be applied in the following installations and equipment, where it provides reliable sealing and optimal operational reliability.
| Brand | SKU |
|---|---|
| Alfa Laval | ALC-1D 5.5kw-7.5kw |
| Alfa Laval | ALC-2D 5.5kw-18.5kw |
| Alfa Laval | ALC-3D 5.5kw-18.5kw |
