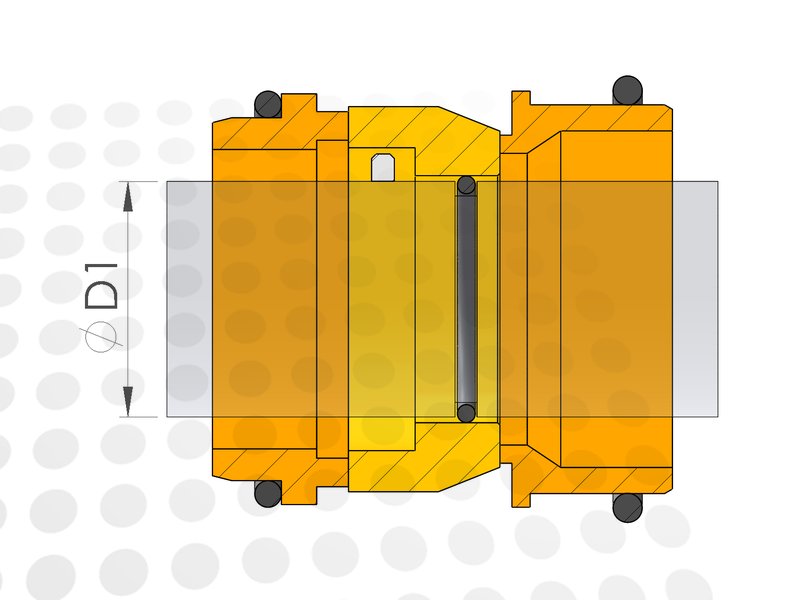

The Qseals 1C-QSARL-0160-SSV-SCV is part of the QSARL group and is designed for 16 mm shaft applications. It features a silicon carbide rotary face paired with a silicon carbide stationary face. This product uses Viton (FKM VIT) elastomers. The maximum recommended operating temperature is 205°C. It serves as a direct replacement for the AES N-S0SU-DDZDAZS-0160, Grundfos 96066747, Sarlin 96066747, and Sarlin YJ-34452.
| Brand | Qseals |
|---|---|
| Group | QSARL |
| SKU | 1C-QSARL-0160-SSV-SCV |
No commitment. Receive a price and technical data sheet within 24 hours.
Technical specifications
| Category | PUMP SPECIFIC |
|---|---|
| Shaft size | 16 mm |
| Rotary face | Silicon Carbide |
| Stationary face | Silicon Carbide |
| Elastomers | Viton |
| Outer rotary face | Silicon Carbide |
| Outer stationary face | Carbon |
| Outer elastomer | Viton |
| Temperature Limit | 205 °C |
| Pressure Limit | 20 bar |
