The Qseals 1C-QWS03D-0550-XCV-XCV is part of the QWS03D group and is designed for 55 mm shaft applications. It features a Stainless Steel (SS) rotary face paired with a Carbon (CAR) stationary face. This product uses Viton (FKM VIT) elastomers. The maximum recommended operating temperature is 205°C. It is a compatible alternative to the AES F-W03DU-EAZEAZ1-0550.
| Brand | Qseals |
|---|---|
| Group | QWS03D |
| SKU | 1C-QWS03D-0550-XCV-XCV |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.
Technical specifications
| Category | WAVE SPRING |
|---|---|
| Shaft size (D1) | 55 mm |
| Rotary face | Stainless Steel (SS) |
| Stationary face | Carbon (CAR) |
| Elastomers | Viton (FKM VIT) |
| Outer rotary face | Stainless Steel (SS) |
| Outer stationary face | Carbon (CAR) |
| Outer elastomer | Viton |

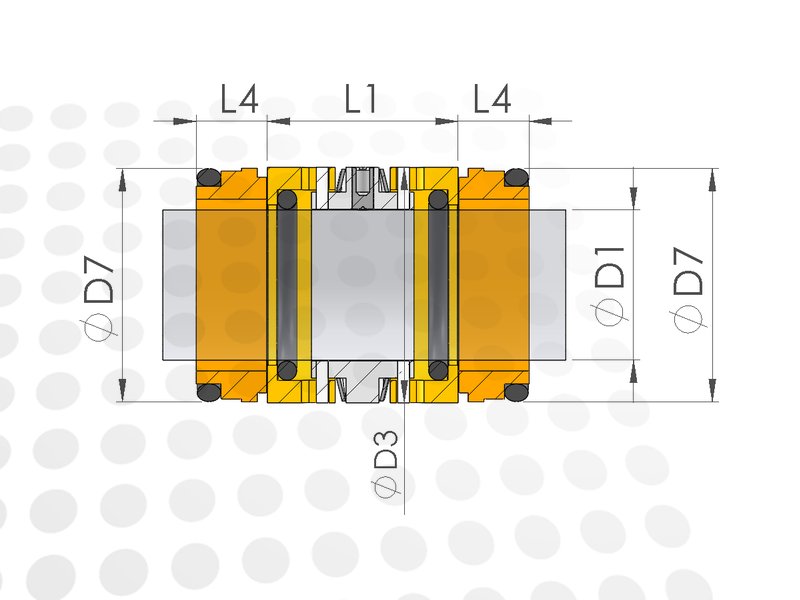

| Rotary Outer Diameter (D3) | |
| Stationary Housing Diameter (D7) | |
| Rotary Working Length (L1) | |
| Stationary Bore Depth (L4) | |
| Temperature Limit | 205 °C |
| Pressure Limit | 20 bar |
Other size or material combination?
Search within the Qseals QWS03D product group.
Alternatives
The Qseals 1C-QWS03D-0550-XCV-XCV is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | F-W03DU-EAZEAZ1-0550 |
