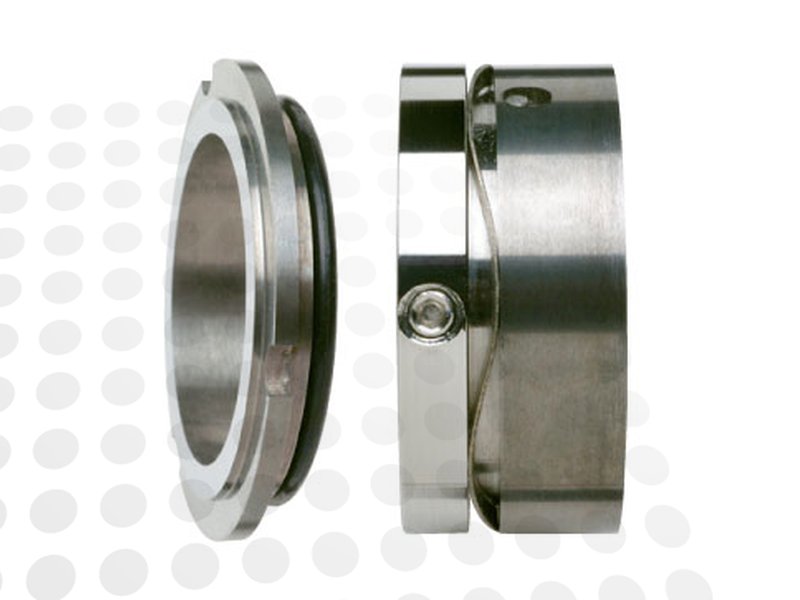

The Qseals 1C-QWS03STS-0200-XCE is part of the QWS03STS group and is designed for 20 mm shaft applications. It features a Stainless Steel (SS) rotary face paired with a Carbon (CAR) stationary face. This product uses EPDM (EPR) elastomers. The maximum recommended operating temperature is 140°C. It serves as a direct replacement for the AES F-W03U-EAY1-0200, Alfa Laval 7400.101E, Alfa Laval 7400.141E, and 3 other alternatives.
| Brand | Qseals |
|---|---|
| Group | QWS03STS |
| SKU | 1C-QWS03STS-0200-XCE |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.

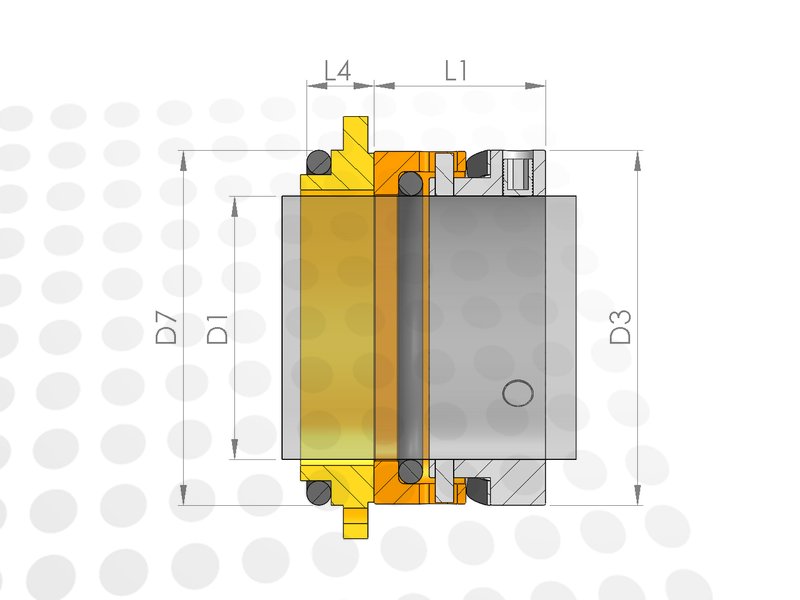

Technical specifications
| Category | WAVE SPRING |
|---|---|
| Shaft size (D1) | 20 mm |
| Rotary face | Stainless Steel (SS) |
| Stationary face | Carbon (CAR) |
| Elastomers | EPDM (EPR) |
| Rotary Outer Diameter (D3) | |
| Stationary Housing Diameter (D7) | |
| Rotary Working Length (L1) | |
| Stationary Bore Depth (L4) | |
| Temperature Limit | 140 °C |
| Pressure Limit | 20 bar |
Other size or material combination?
Search within the Qseals QWS03STS product group.
Alternatives
The Qseals 1C-QWS03STS-0200-XCE is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | F-W03U-EAY1-0200 |
| Alfa Laval | 7400.101E |
| Alfa Laval | 7400.141E |
| Alfa Laval | 9630026348 |
| Alfa Laval | 9630033246 |
| LATTY | LI ALSSR 20 |
Applications
The Qseals 1C-QWS03STS-0200-XCE can be applied in the following installations and equipment, where it provides reliable sealing and optimal operational reliability.
| Brand | SKU |
|---|---|
| Ibex (Alfa Laval) | NMOG 322 |
| SSP | SRU1 |
| Alfa Laval | NMOG 322 |
| Alfa Laval | NMOG 332 |
| Alfa Laval | SRU1 |
| Alfa Laval | SSP SRU1 |
