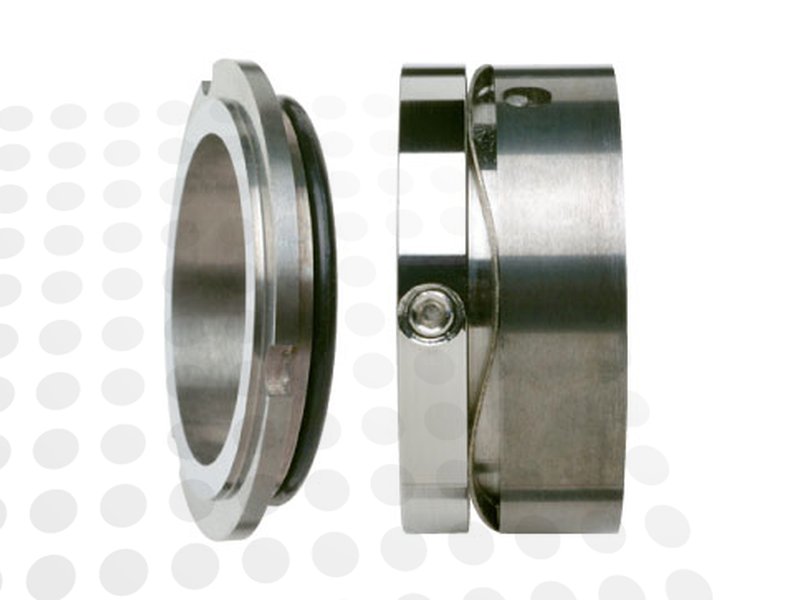

The Qseals 1C-QWS03STS-0300-XCN is part of the QWS03STS group and is designed for 30 mm shaft applications. It features a stainless steel rotary face paired with a carbon stationary face. This product uses NBR (NITRILE) elastomers. The maximum recommended operating temperature is 120°C. It serves as a direct replacement for the AES F-W03U-EAX1-0300, Alfa Laval 7400.102N, Alfa Laval 7400.142N, and 4 other alternatives.
| Brand | Qseals |
|---|---|
| Group | QWS03STS |
| SKU | 1C-QWS03STS-0300-XCN |
No commitment. Receive a price and technical data sheet within 24 hours.
Technical specifications
| Category | WAVE SPRING |
|---|---|
| Shaft size | 30 mm |
| Rotary face | Stainless Steel |
| Stationary face | Carbon |
| Elastomers | NBR |

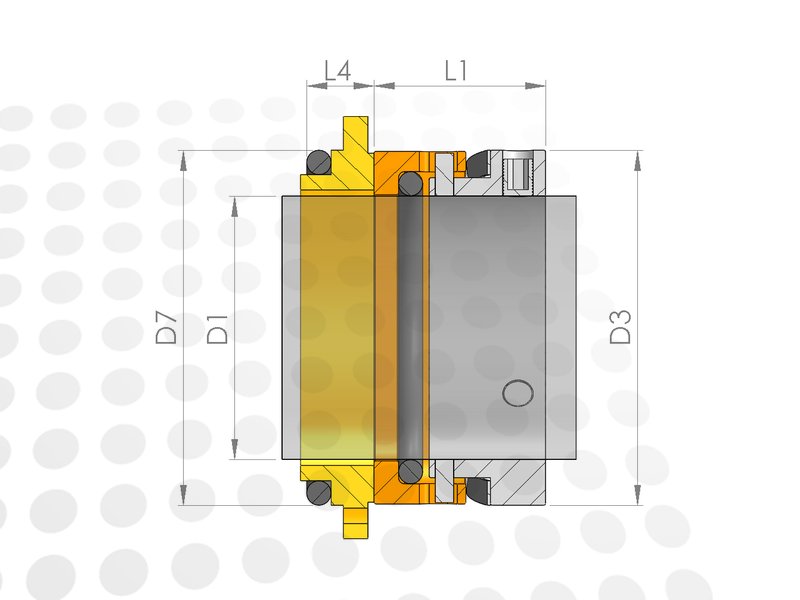

| Rotary Outer Diameter | |
| Stationary Housing Diameter | |
| Rotary Working Length | |
| Stationary Bore Depth | |
| Temperature Limit | 120 °C |
| Pressure Limit | 20 bar |
Alternatives
The Qseals 1C-QWS03STS-0300-XCN is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | F-W03U-EAX1-0300 |
| Alfa Laval | 7400.102N |
| Alfa Laval | 7400.142N |
| Alfa Laval | 9630033227 |
| Alfa Laval | 9630033229 |
| Alfa Laval | 9630033248 |
| Alfa Laval | 9630033251 |
Applications
The Qseals 1C-QWS03STS-0300-XCN can be applied in the following installations and equipment, where it provides reliable sealing and optimal operational reliability.
| Brand | SKU |
|---|---|
| Alfa Laval | NMOG 422 |
| Alfa Laval | NMOG 432 |
| Alfa Laval | SRU2 |
| Alfa Laval | SSP SRU2 |
