The Qseals 1C-QWS13STS-0381-UCE is part of the QWS13STS group and is designed for 38.1 mm shaft applications. It features a Ceramic (CER) rotary face paired with a Carbon (CAR) stationary face. This product uses EPDM (EPR) elastomers. The maximum recommended operating temperature is 140°C. It is a compatible alternative to the AES F-W13U-BAY1-0381.
Technical specifications
| Category | PUMP SPECIFIC |
|---|---|

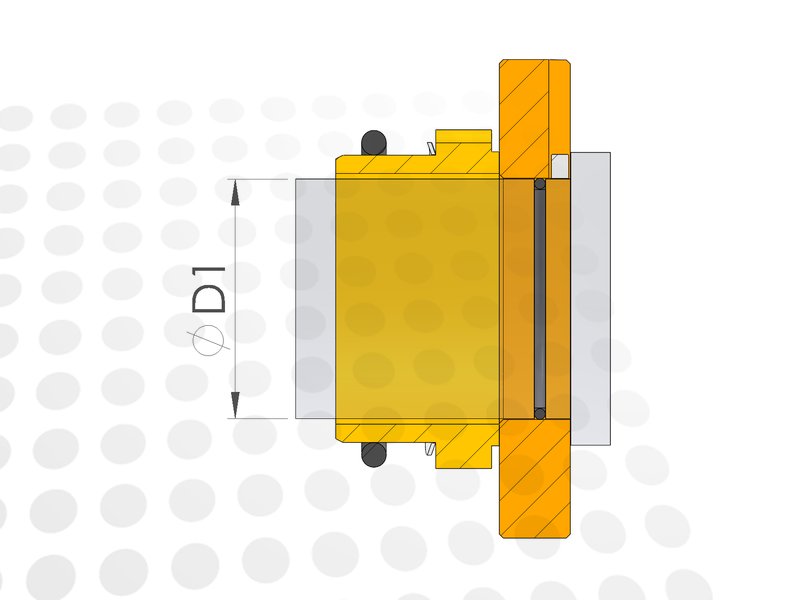

| Shaft size (D1) | 38.1 mm |
| Rotary face | Ceramic (CER) |
| Stationary face | Carbon (CAR) |
| Elastomers | EPDM (EPR) |
| Temperature limit | 140 °C |
| Pressure limit | 16 bar |
Other size or material combination?
Search within the Qseals QWS13STS product group.
Alternatives
The Qseals 1C-QWS13STS-0381-UCE is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | F-W13U-BAY1-0381 |
Applications
The Qseals 1C-QWS13STS-0381-UCE can be applied in the following installations and equipment, where it provides reliable sealing and optimal operational reliability.
