The Qseals 1C-QWS14-0698-TTE-TCE is part of the QWS14 group and is designed for 69.8 mm shaft applications. It features a Tungsten Carbide (TC) rotary face paired with a Tungsten Carbide (TC) stationary face. This product uses EPDM (EPR) elastomers. The maximum recommended operating temperature is 140°C.
| Brand | Qseals |
|---|---|
| Group | QWS14 |
| SKU | 1C-QWS14-0698-TTE-TCE |
No commitment. Personalised offer including technical data sheet. Usually within 1–3 hours during business hours.
Technical specifications
| Category | PUMP SPECIFIC |
|---|---|

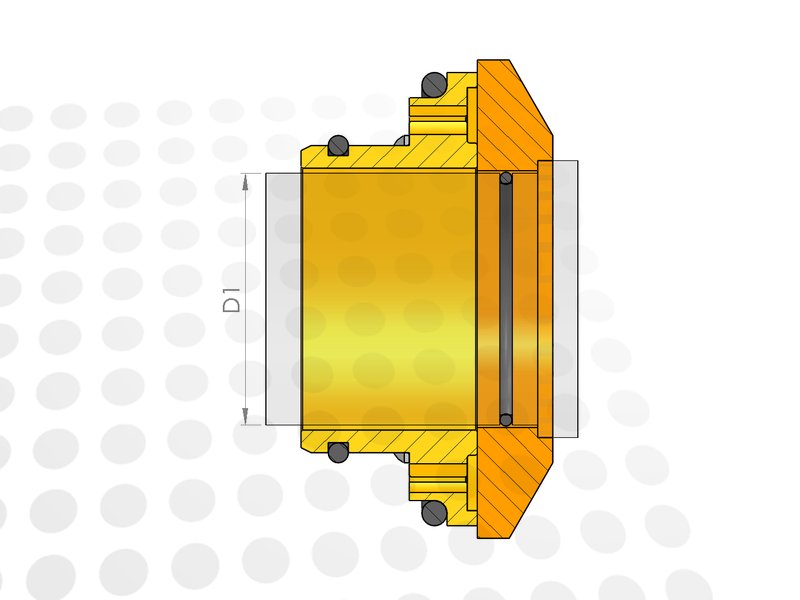

| Shaft size (D1) | 69.8 mm |
| Rotary face | Tungsten Carbide (TC) |
| Stationary face | Tungsten Carbide (TC) |
| Elastomers | EPDM (EPR) |
| Outer rotary face | Tungsten Carbide (TC) |
| Outer stationary face | Carbon (CAR) |
| Outer elastomer | EPDM |
| Temperature Limit | 140 °C |
| Pressure Limit | 16 bar |
Other size or material combination?
Search within the Qseals QWS14 product group.
