The Qseals 1C-QWS15STS-0254-ZZV is part of the QWS15STS group and is designed for 25.4 mm shaft applications. It features a Sintered Silicon Carbide (SSIC) rotary face paired with a Sintered Silicon Carbide (SSIC) stationary face. This product uses Viton (FKM VIT) elastomers. The maximum recommended operating temperature is 205°C. It serves as a direct replacement for the AES F-W015U-JJZ1-0254 and Vulcan 0254.1651.V.S..
Technical specifications
| Category | PUMP SPECIFIC |
|---|---|

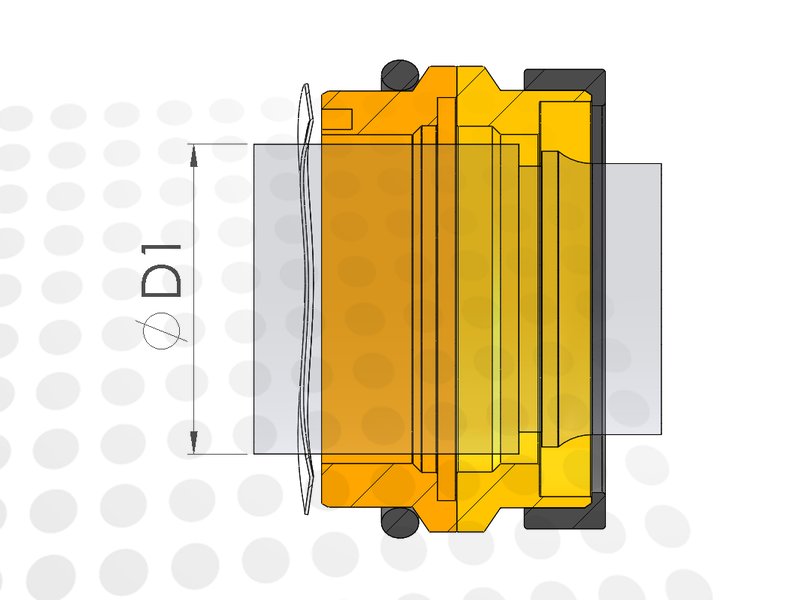

| Shaft size (D1) | 25.4 mm |
| Rotary face | Sintered Silicon Carbide (SSIC) |
| Stationary face | Sintered Silicon Carbide (SSIC) |
| Elastomers | Viton (FKM VIT) |
| Temperature limit | 205 °C |
| Pressure limit | 16 bar |
Other size or material combination?
Search within the Qseals QWS15STS product group.
Alternatives
The Qseals 1C-QWS15STS-0254-ZZV is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | F-W015U-JJZ1-0254 |
| Vulcan | 0254.1651.V.S. |
Applications
The Qseals 1C-QWS15STS-0254-ZZV can be applied in the following installations and equipment, where it provides reliable sealing and optimal operational reliability.
| Brand | SKU |
|---|---|
| Tuchenhagen | VPSH 42 |
| Tuchenhagen | VPSU 42 |
| Jabsco | Hy~Line LH42 |
| Jabsco | Hy~Line LH44 |
| Jabsco | Ultima LU42 |
| Jabsco | Ultima LU44 |
